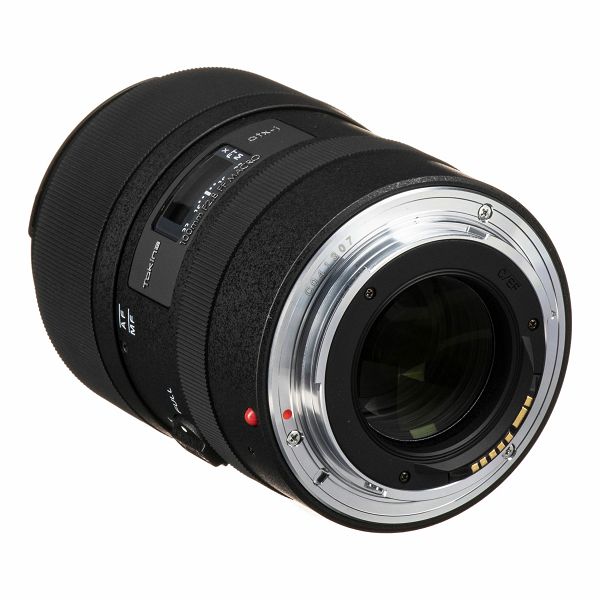

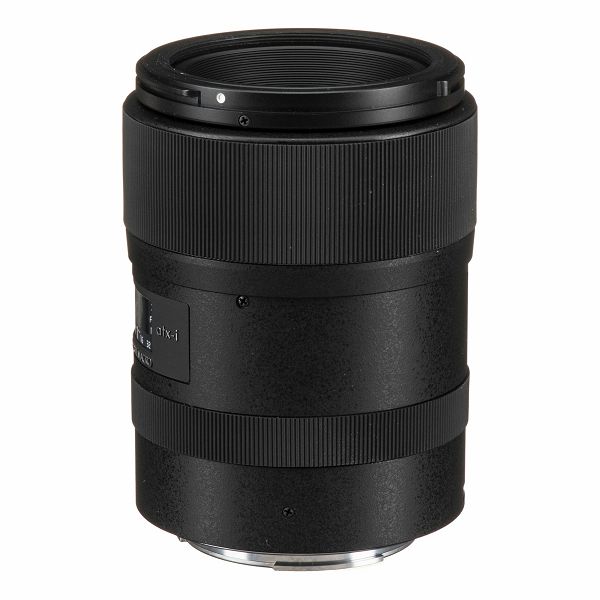

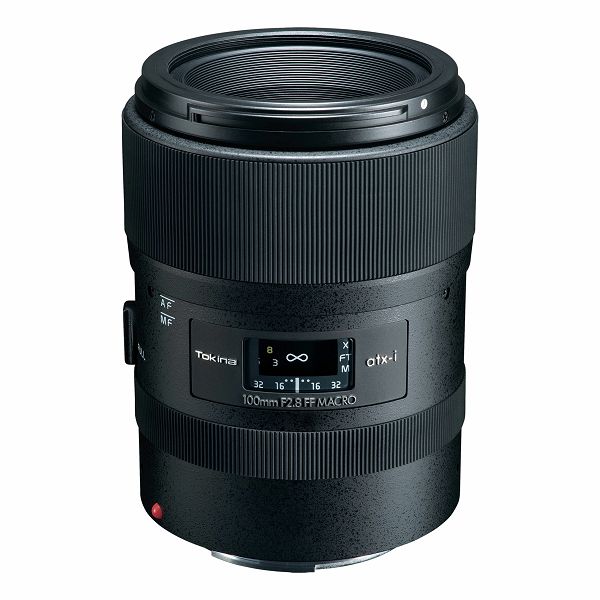

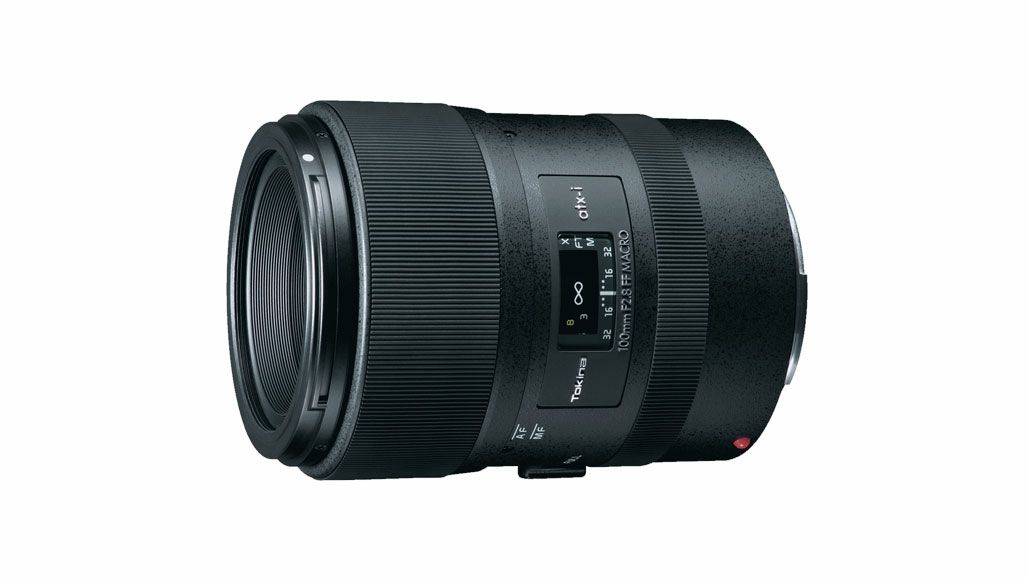

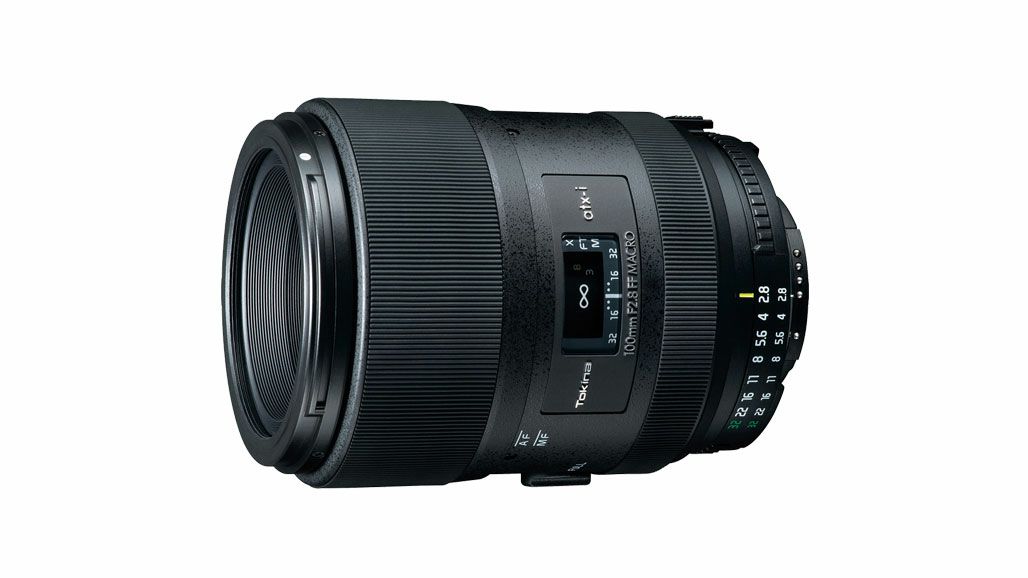

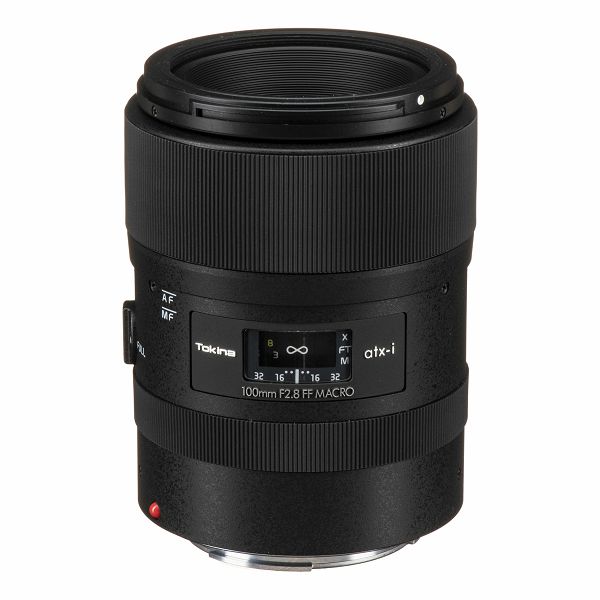

Tokina atx-i 100mm F2.8 FF MACRO PLUS Tele Prime Mount: Canon EF
The Tokina atx-i 100mm F2.8 FF MACRO is a compact medium tele macro lens for full frame format film and digital SLR cameras. Being light-weight, compact, performing high resolution, fast aperture, low distortion, low falloff and beautiful soft bokeh this lens is extremely attractive tool for macro, portraits, landscapes, street art, commercial and general purpose shooting.
Optical Performance
To achieve an exceptional optical performance in still and video shooting purposes, two aspherical glass elements and two Super-Low Dispersion glass elements were used in order to minimize distortion, manage spherical aberration and astigmatism while achieving excellent edge-to edge resolution and contrast of the entire image. Great efforts were done to control light fall-off at all focal lengths.

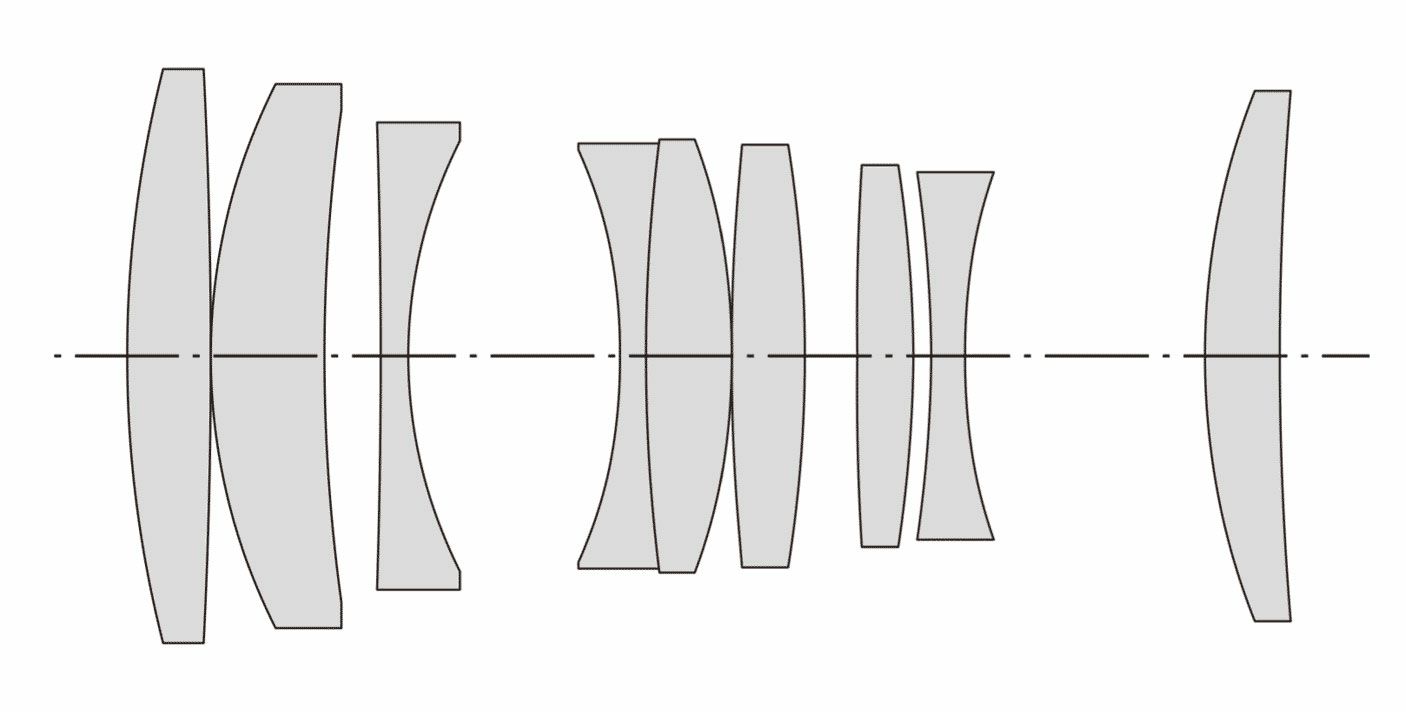

LENS CONSTRUCTION

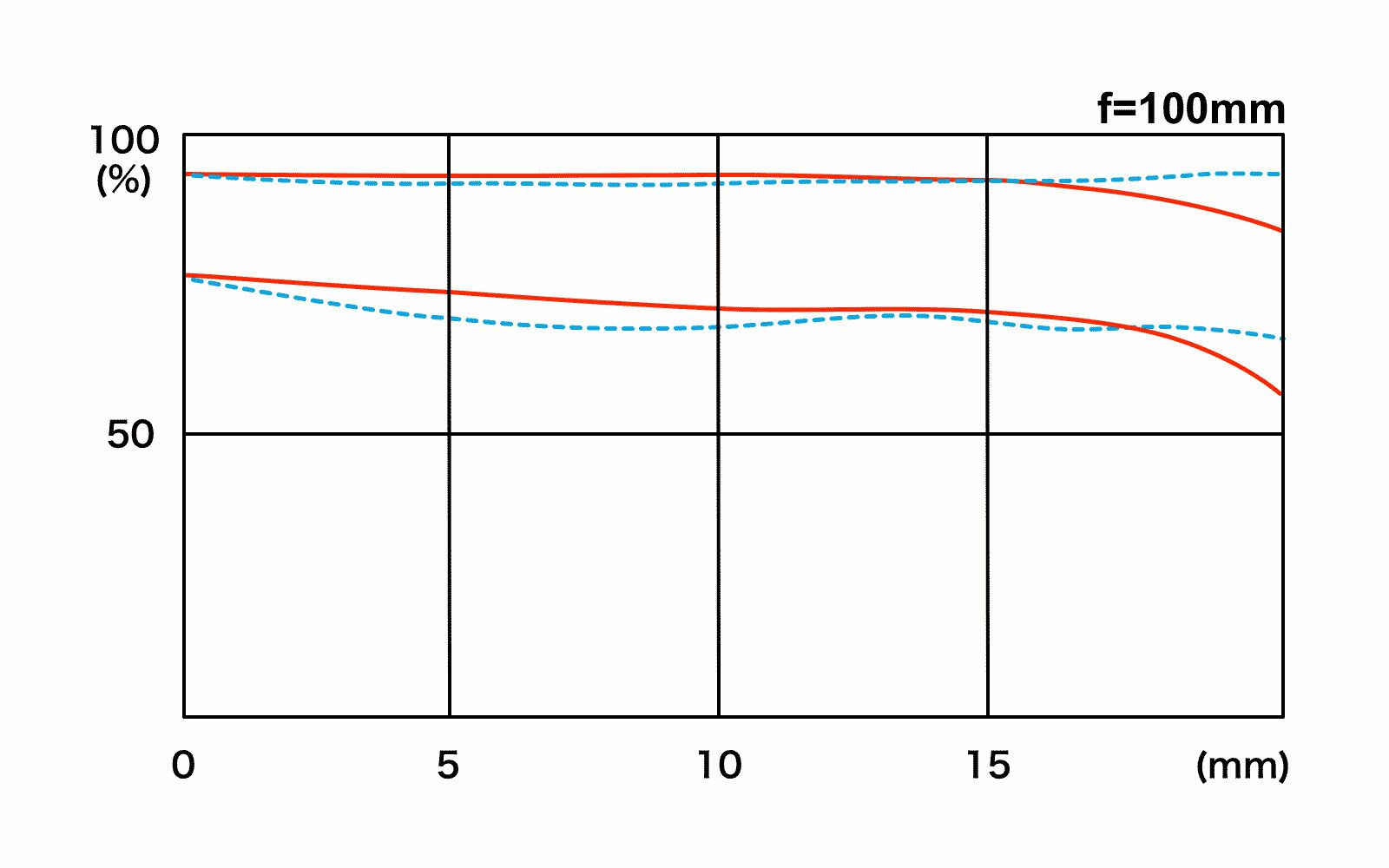

MTF CHART

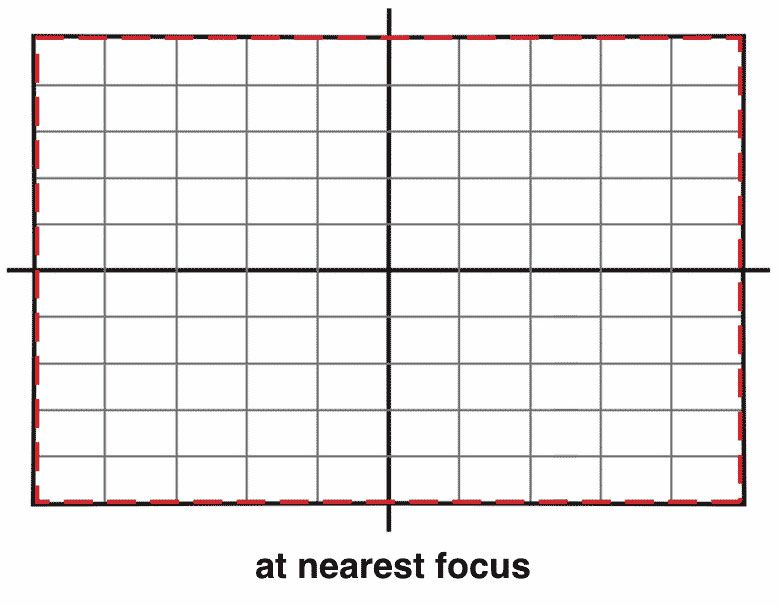

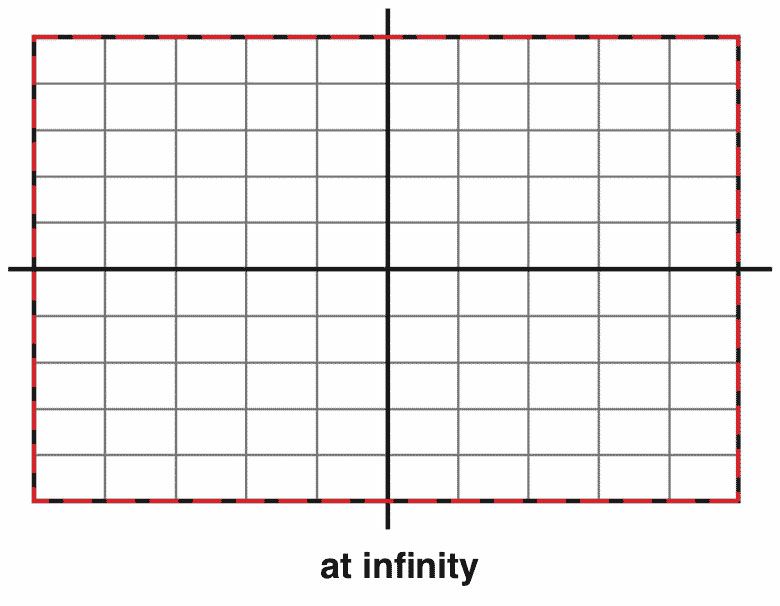

DISTORTION CURVE
DISTORTION CURVE
Mechanics

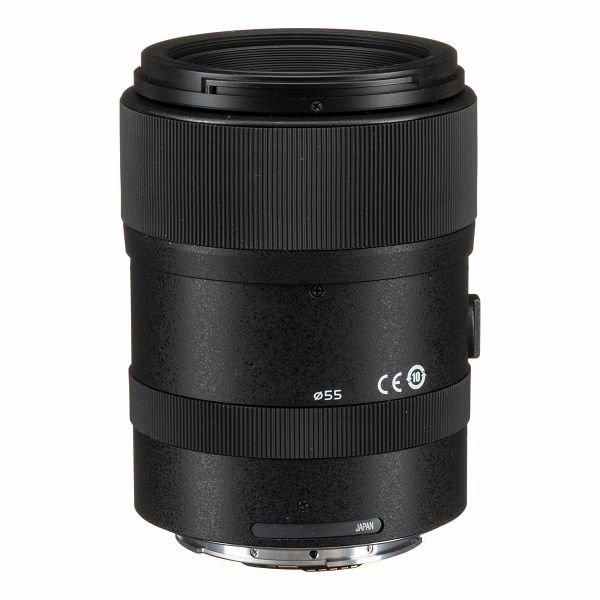

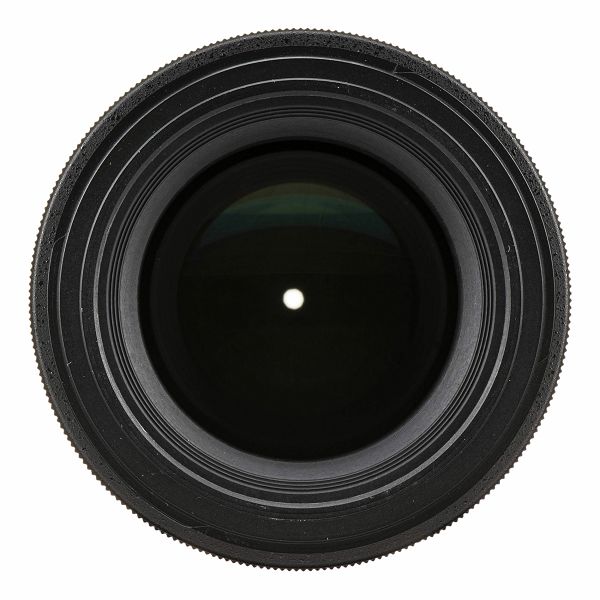

The front of the lens has a 55mm filter threads which extends during the focusing but does not rotate. This allows different filters including polarizers to be used for landscape or product photography.
A focus range limiter switch on the side of the lens locks the lens focus into or out of the macro focusing range to avoid excessive AF hunting.
The direction of the manual focusing ring matches the proprietary direction of Nikon and Canon lenses.
* When used with Nikon DSLRs that do not have a focus motor in the camera body like D3000 and D5000 series only MF mode is available.
High-Light Features
- Compact and lightweight design.
- Life-sized (1:1) reproduction at 30 cm.
- Extremely high corner to corner resolving performance and almost zero distortion.
- Beautiful bokeh with almost circular-shaped background highlights for portrait shooting thanks to classical extending barrel focusing system.
- A focus range limiter switch for effective focusing routine.
- The direction of the manual focusing ring matches the proprietary direction of Nikon and Canon lenses.
- Manual aperture ring (Nikon F mount only) based on the standards of Ai AF Nikkor D-Type lenses to use with wide variety of cameras including old Nikon film cameras.
- One-touch focus Clutch mechanism to switch between autofocus and manual focus easy.
For Environmental Portraits
Due to classical extending barrel focusing system the lens creates magnificently soft bokeh in both the background and foreground. 100mm focal length is short enough to allow easy and natural communication with the model, creating a feeling of comfort and creativity. In combination with fast f/2.8 aperture the lens can be used in the widest variety of shooting settings both indoor and outdoor.
Incorporated 9 bladed diaphragm creates beautiful, almost circular-shaped background highlights up to f/5.6 with effectively surpassed longitudinal chromatic aberration.
For Distant Landscapes
We developed the Tokina atx-i 100mm F2.8 FF MACRO not just only for macro shooting. Challenge yourself in distant landscapes by using 100mm focal length to capture interesting object in the foreground and beautiful compressed landscape scenery in the background. The lens was designed for this shooting genre by realizing impressive color rendering and high resolution abilities.
For Macro Shooting
The Tokina atx-i 100mm F2.8 FF MACRO incorporates all the necessary features and provides all the main advantages for dedicated macro shooters. The lens is capable of life-sized (1:1) reproduction at 30 cm. This allows photographers to have a little working distance from the subject and still obtain impressive magnification. Having some working distance is important when shooting easily startled subjects such as insects. Designed for full frame sensors, the focal length equivalent on a DSLR with an APS-C sensor turns to 150mm on Nikon camera and 160mm on Canon. This gives an advantage of shooting macro with 1.5x-1.6x larger magnification than a full frame camera.
For Video & Time-Lapse Shooting
Depending on purpose and the way of expression the Tokina atx-i 100mm F2.8 FF MACRO can be useful gear for close-up commercial video* and time-lapse shooting thanks to its excellent color reproduction if you film in LOG and exceptional sharpness.
* MF mode is suggested when shooting video.
Due to excellent macro abilities, constant aperture and manual focus ring (Nikon F mount) Tokina atx-i 100mm F2.8 FF MACRO is widely integrated for image processing and automatic inspection in Factory Automatization (FA) field.
Compactness and lightweight of the Tokina atx-i 100mm F2.8 FF MACRO are highly valued in implantology and esthetic dentistry for dental photography.
In The Box
- Tokina atx-i 100mm F2.8 FF MACRO PLUS Tele Prime Mount: Canon EF
- Carton Box
- Cleaning Cloth
- Front Lens Cap
- Instructions Manual
- Lens Hood
- Rear Lens Cap
- Warranty Sheet
Key features
- Model: atx-i 100mm F2.8 FF MACRO PLUS
- Model Description: Tokina atx-i 100mm F2.8 FF MACRO PLUS
- Series: atx-i
- Type: Tele Prime
- Sensor Size: Full Frame
- Mount: Canon EF
- Macro Lens: Yes
- Color: Black
- Country of Origin: Japan
- Focal Length: 100mm
- Maximum Aperture: f/2.8
- Minimum Aperture: f/32
- Automatic Aperture: Yes
- Manual Aperture Ring: Yes (for Nikon F)
- Angle of View: 24°
- Minimum Focusing Distance: 0.3m
- Macro Ratio: 1 : 1
- Focusing Mode: Automatic
- Manual Focusing Ring: Yes
- Autofocus Switch: Clutch Ring
- Focusing Type: External Focus
- Filter Size: 55mm
- Coating: Multi-coating
- Construction E/G: 9 Elements in 8 Groups
- Aperture Blades: 9
- Lens Hood: BH-551
- Electrical Contacts: Yes
