Nikon Z6 II Mirrorless Camera Essential Movie Kit
Nikon Z6 II Essential Movie Kit

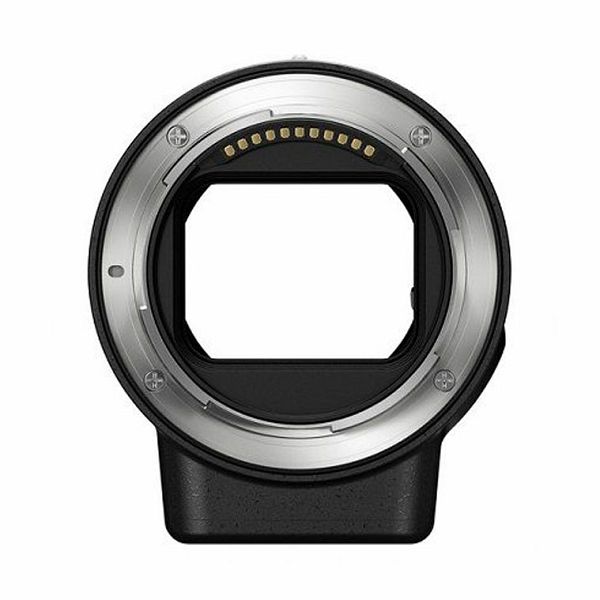

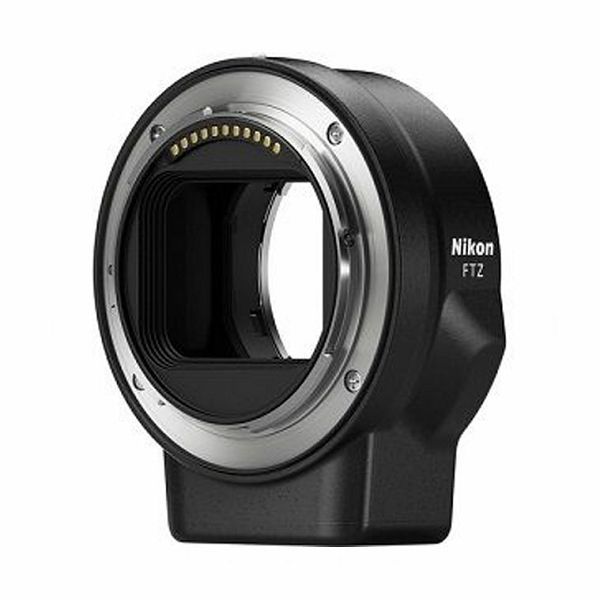

This ultimate essential kit for the independent filmmaker features the Nikon Z 6II full-frame mirrorless camera, the FTZ Mount Adapter, Atomos Ninja V, SmallRig quick-release camera cage, and various accessories. Take your video content to the next level.

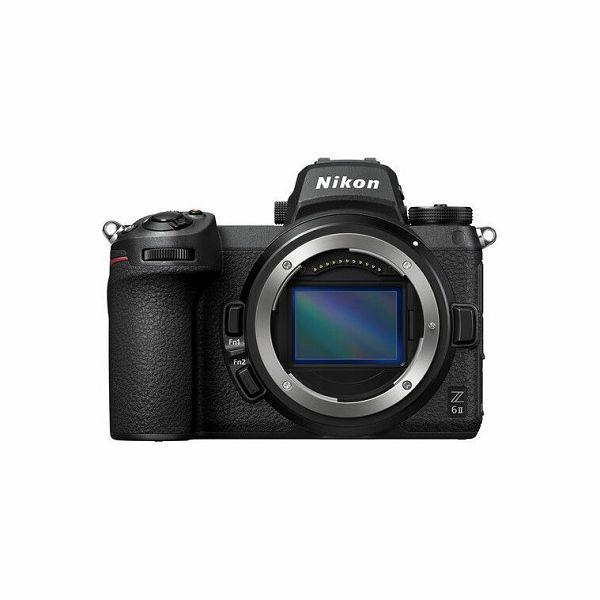

This filmmaker’s kit includes the Nikon Z 6II full-frame mirrorless camera with the RAW video output function already enabled.
Record ProRes RAW from camera RAW
Do more with your video footage. The Nikon Z 6II can output a 12-bit RAW video stream straight from the camera to the included Atomos Ninja V.3 4 The video stream is recorded as ProRes RAW,5 giving you maximum flexibility when grading, and extended detail in bright and dark areas.
More freedom to create
Whether you’re a pro or just starting out, the Nikon Z 6II Essential Movie Kit gives you the core tools you ?need to take your video content to the next level. With a base this strong and flexible, where you go next is anywhere you want.
The Nikon Z 6II offers ultra-high-quality video at any frame rate. It delivers exquisite 4K footage oversampled from 6K with full-pixel readout. In-camera five-axis optical Vibration Reduction works together with electronic VR for rock-steady shots. And Atomos open protocol is supported to enable seamless integration of the included Atomos Ninja V

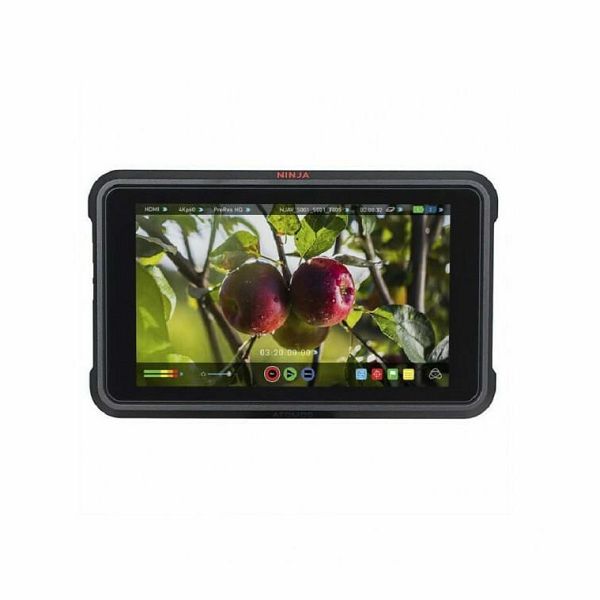

Atomos Ninja V
Benefit from flexible monitoring and recording in edit-ready ProRes and DNxHR formats. Record in 4K 10-bit with N-log. Or simultaneously record uncompressed 8-bit 4K/UHD movie files to the memory card and the Atomos. A power adapter is included, as is a caddy for your hard drive.

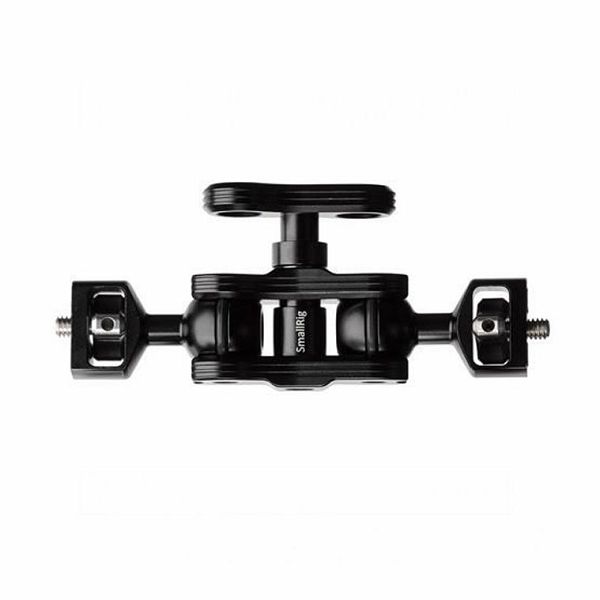

Mount your Atomos Ninja V to the camera cage with the Magic Arm clamp. Adjust the twin ballhead screw clamps for rock-steady monitoring at any angle. A central wingnut locks and releases the whole arm.

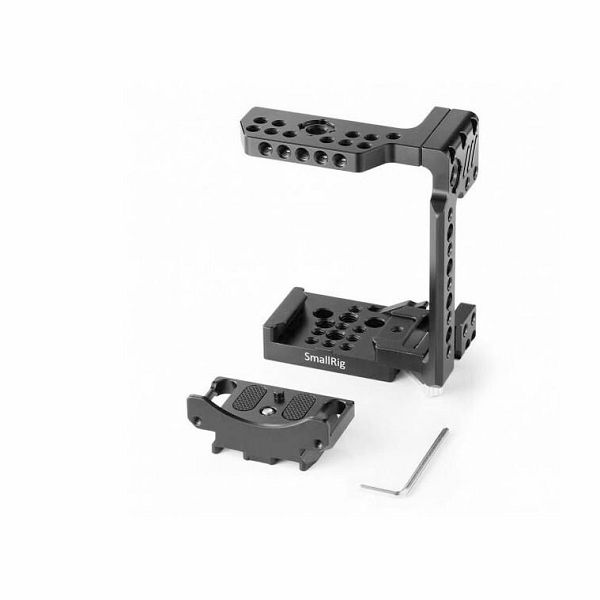

Camera cage and top-mounting grip handle feature mounting holes in two sizes, and holes for locating ARRI-compatible extension blocks. The grip ensures steadier moving shots so you can sweep and track with ease.

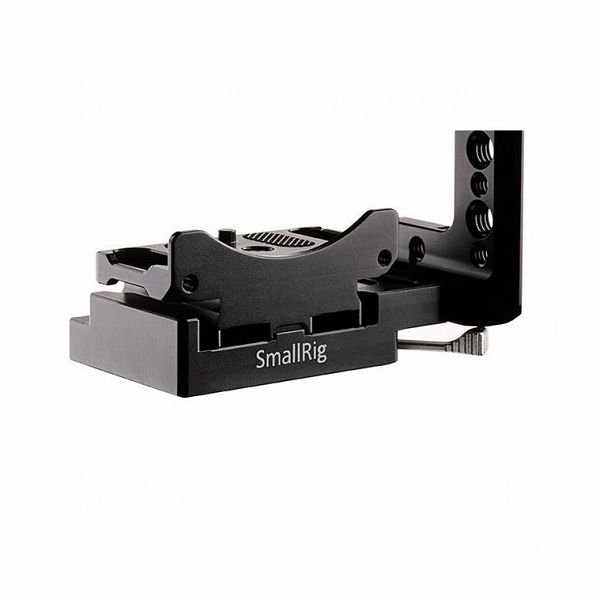

Switch rapidly between shooting scenarios. The SmallRig camera cage boasts a built-in Manfrotto-compatible quick-release system, so you can transfer to and from tripods or monopods in seconds.

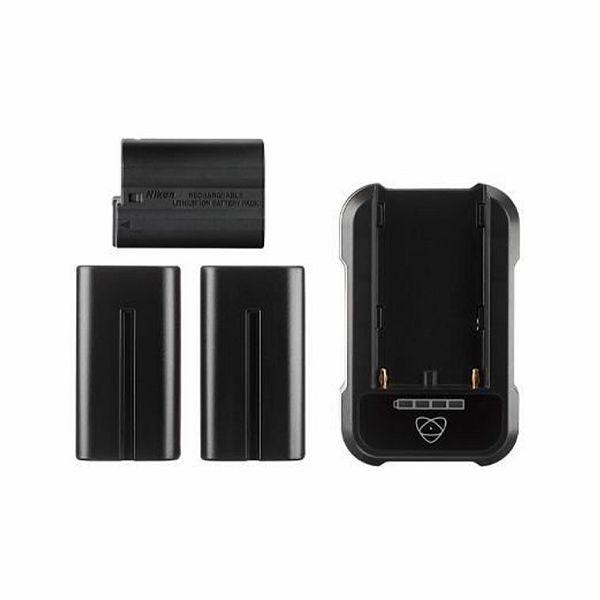

Never stop creating. 2x 5200 mAh batteries and a fast charger keep your Atomos running on even the longest shoot. An additional EN-EL15c battery ensures your Z 6II is always ready for the next take.

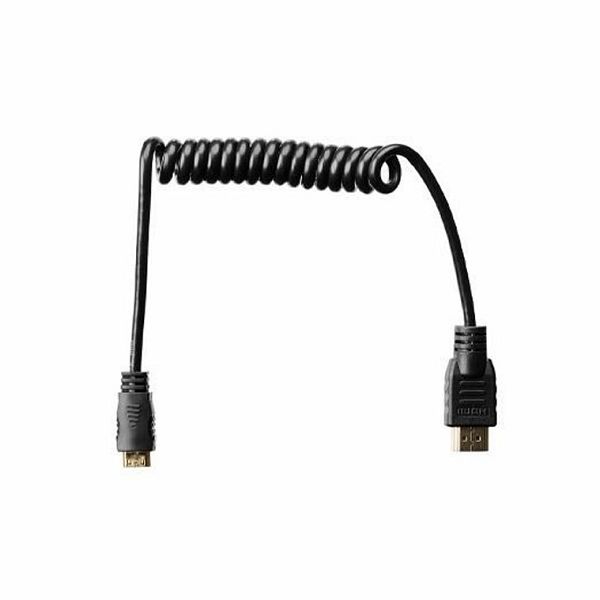

Shoot worry-free thanks to the coiled HDMI cable, which keeps your rig tidy and minimises strain on connections. Supports high speed HDMI 2.0 for 4Kp60 ProRes and RAW high-frame-rate recordings

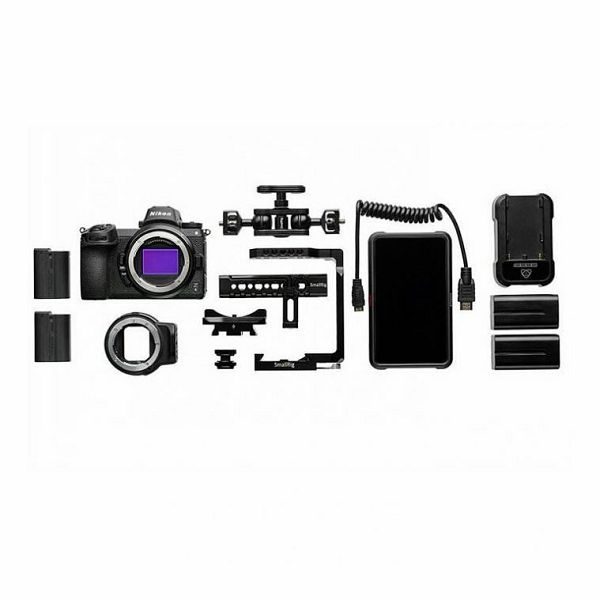

Items Included
- Nikon Z6 II Mirrorless Camera
- Nikon EN-EL15c Rechargeable Lithium-Ion Battery
- Nikon MH-25A Battery Charger for EN-EL15 Li-Ion Battery
- Nikon UC-E24 USB Cable
- HDMI/USB Cable Clip
- Nikon BS-1 Hot Shoe Cover for Nikon SLR Cameras
- Nikon AN-DC19 Camera Strap
- Nikon BF-N1 Body Cap
- Nikon DK-29 Rubber Eyecup
- Atomos Ninja V 5" 4K HDMI Recording Monitor
- Master Caddy II
- 12V, 3A AC Power Supply
- Battery Eliminator
- 2 x NP-F750 L-Series 5200mAh Batteries
- Fast Charger
- Power Supply
- SmallRig Quick Release Half Cage for Nikon
- SmallRig Articulating Arm with Double Ballheads
- Atomos Mini HDMI
Nikon Z6 II Specs
Key Specs
- Lens Mount: Nikon Z
- Sensor Resolution
Actual: 25.28 Megapixel
Effective: 24.5 Megapixel (6000 x 4000) - Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS
- Image Stabilization: Sensor-Shift, 5-Axis
- ISO Sensitivity Range:
Photo/Video
100 to 51,200 (Extended: 50 to 204,800) - Internal Recording Modes
H.264/MOV/MP4 4:2:0 8-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps - External Recording Modes
4:2:2 10-Bit via HDMI
UHD 4K (3840 x 2160)
1920 x 1080 - Media/Memory Card Slot
Slot 1: CFexpress Type B / XQD
Slot 2: SD/SDHC/SDXC (UHS-II) - Video I/O: 1x Mini-HDMI Output
- Audio I/O:
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input - Power I/O: 1x USB-C Input
- Other I/O:
1x Nikon DC2 Data Input
1x USB-C (USB 3.2 / 3.1 Gen 1) Data Output (Shared with Power Input) - Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2
- Display Type: Tilting Touchscreen LCD
- Battery:
1x EN-EL15c Rechargeable Lithium-Ion (Included)
Imaging
- Lens Mount: Nikon Z
- Sensor Resolution:
Actual: 25.28 Megapixel
Effective: 24.5 Megapixel (6000 x 4000) - Image Sensor: 35.9 x 23.9 mm (Full-Frame) CMOS
- Sensor Crop (35mm Equivalent):
Crop Factor: 1x
*Additional Crop Occurs in Select Video Modes - Image Stabilization: Sensor-Shift, 5-Axis
- Built-In ND Filter: No
- Capture Type: Stills & Video
Exposure Control
- Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter
- Shutter Speed: 1/8000 to 900 Seconds
- Bulb/Time Mode: Bulb & Time Mode
- ISO Sensitivity Range:
Photo/Video
100 to 51,200 (Extended: 50 to 204,800) - Metering Method: Center-Weighted Average, Highlight Weighted, Matrix, Spot
- Exposure Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
- Exposure Compensation: -5 to +5 EV (1/3, 1/2 EV Steps)
- Metering Range: -4 to 17 EV
- White Balance:
Presets:
Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade - Continuous Shooting: Up to 14 fps at Maximum Resolution for up to 124 Frames
- Interval Recording: Yes
- Self-Timer: 2/5/10/20-Second Delay
Still Image Capture
- Aspect Ratio: 1:1, 3:2, 16:9
- Image File Format: JPEG, Raw
- Bit Depth: 14-Bit
Video Capture
- Internal Recording Modes:
H.264/MOV/MP4 4:2:0 8-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94/100 fps - Fast-/Slow-Motion Support: Slow-Motion Only
- Gamma Curve: HDR-HLG, Nikon N-Log
- Recording Limit: 30-Minute Maximum
- IP Streaming: No
- Built-In Microphone: Stereo
- Audio Recording:
AAC Audio
2-Channel LPCM Audio
UHD 4K (3840 x 2160)
1920 x 1080
Interface
- Media/Memory Card Slot:
Slot 1: CFexpress Type B / XQD
Slot 2: SD/SDHC/SDXC (UHS-II) - Video I/O: 1x Mini-HDMI Output
- Audio I/O:
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input - Power I/O: 1x USB-C Input
- Other I/O:
1x Nikon DC2 Data Input
1x USB-C (USB 3.2 / 3.1 Gen 1) Data Output (Shared with Power Input) - Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2
- Mobile App Compatible
Yes: Android & iOS
App Name: SnapBridge
Functionality: Access Stored Files, Firmware Update, Remote Control - Global Positioning (GPS, GLONASS, etc.):
GPS
*Via Connected Smartphone
Monitor
- Display Size: 3.2"
- Resolution: 2,100,000 Dot
- Display Type: Tilting Touchscreen LCD
- Secondary Display: Top: Status Display
Viewfinder
- Type: Electronic
- Size: 0.5"
- Resolution: 3,690,000 Dot
- Eye Point: 21 mm
- Coverage: 100%
- Magnification: Approx. 0.8x
- Diopter Adjustment: -4 to +2
Focus
- Focus Type: Auto and Manual Focus
- Focus Mode: Continuous-Servo AF, Full-Time Servo, Manual Focus, Single-Servo AF
- Autofocus Points: Phase Detection: 273
- Autofocus Sensitivity: -6 to +19 EV
Flash
- Built-In Flash/Light: No
- Flash Modes:
First-Curtain Sync, Off, Rear Curtain/Slow Sync, Rear Sync, Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction - Maximum Sync Speed: 1/200 Second
- Flash Compensation: -3 to +1 EV (1/3, 1/2 EV Steps)
- Dedicated Flash System: iTTL
- External Flash Connection: Shoe Mount
General
- Battery: 1x EN-EL15c Rechargeable Lithium-Ion (Included)
- Shoe Mount: 1x Hot Shoe
- Tripod Mounting Thread: 1x 1/4"-20 Female (Bottom)
- Material of Construction: Magnesium Alloy
- Operating Conditions: 32 to 104°F / 0 to 40°C up to 85% Humidity
- Dimensions (W x H x D): 5.3 x 4 x 2.7" / 134 x 100.5 x 69.5 mm
- Weight: 1.4 lb / 615 g (Body Only)
Packaging Info
- Package Weight: 2.83 lb
- Box Dimensions (LxWxH): 9.2 x 7.3 x 5.3"
Atomos Ninja V
Display
- Panel Type: IPS-Type LCD
- Display Size: 5.0" / 12.7 cm
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Touchscreen: Yes
- Maximum Brightness: 1000 cd/m2
- Bit Depth / Color Support: 8-Bit+FRC (1.07 Billion Colors)
- Pixels Per Inch (ppi): 423 ppi
- Color Gamut: 100% Rec. 709
- Real-Time LUT Monitoring: SDR
- Image Controls: Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
I/O
- Video:
1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output - Embedded Audio:
HDMI: 2-Channel
HDMI: 8-Channel - Audio:
1 x 1/8" / 3.5 mm Mic/Line Input
1 x 1/8" / 3.5 mm Headphone Output - Built-In Speaker: None
- Power I/O: 1 x D-Tap Input
- Other I/O: 1 x LANC (2.5 mm)
- Wi-Fi: None
Format Support
- Video Format:
HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50 - Gamma Curve: Rec709
- Video Signal Conversion:
HDMI to SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
Recording
- Pulldown Conversion: 2:2, 3:2
- Camera Trigger: HDMI
- Pre-Roll Record:
4K: 2 Seconds
Full HD: 8 Seconds - Encoding Formats:
Up to 4097 x 2160
ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit
DNxHR HQ, HQX, LB, SQ 8/10-Bit - Maximum Audio Tracks: 12
- Metadata Tagging: 10
Power
- DC Input Power: 6.2 to 16.8 VDC
- Battery Type: 1 x L-Series
- Power Consumption:
10 W (Typical)
22 W (Maximum)
Mounting
- Mounting: 2 x 3/8"-16 Female
- Environmental Operating Temperature: 104°F / 40°C
General
- Material of Construction: Aluminum, Polycarbonate
- Dimensions: 5.9 x 3.6 x 1.2" / 151 x 91.5 x 31.5 mm
- Weight: 12.7 oz / 360 g
