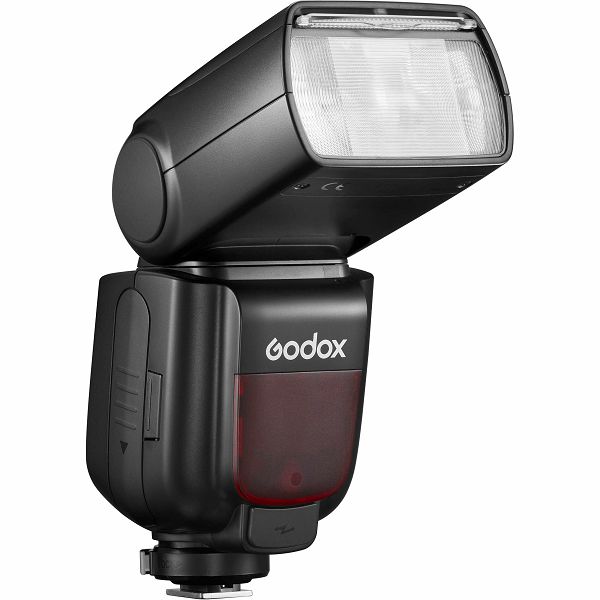

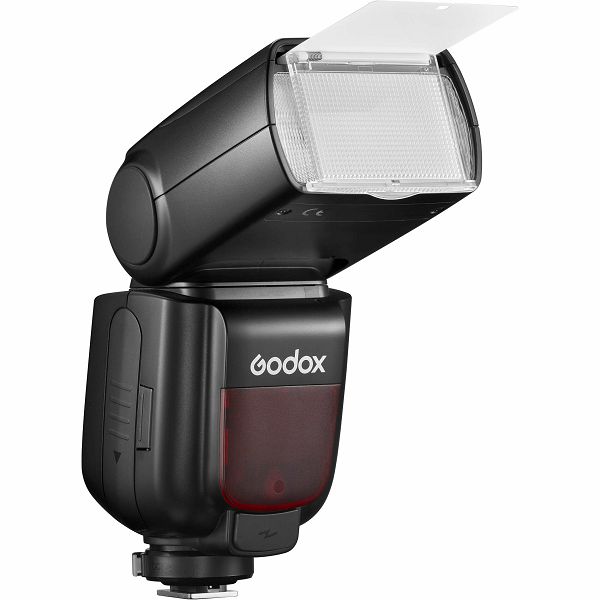

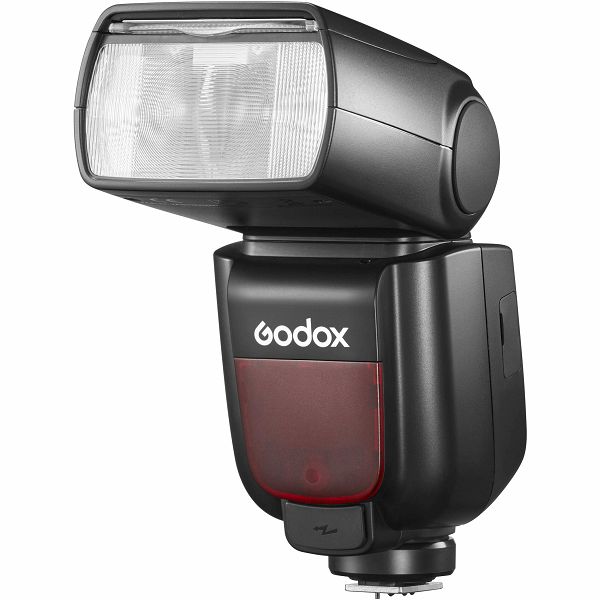

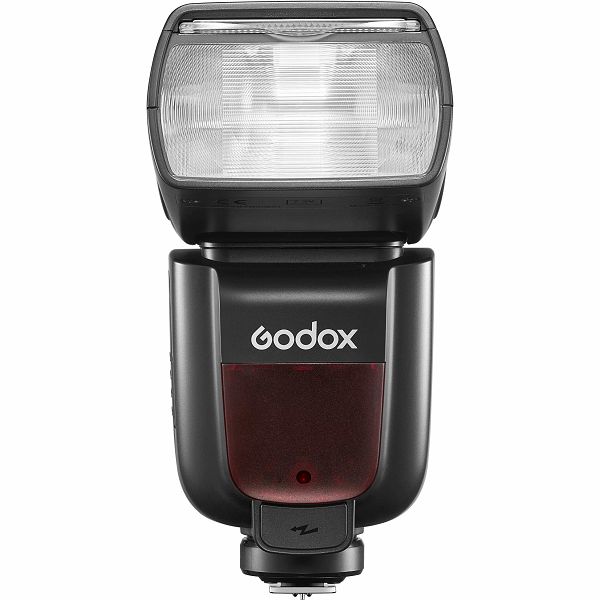

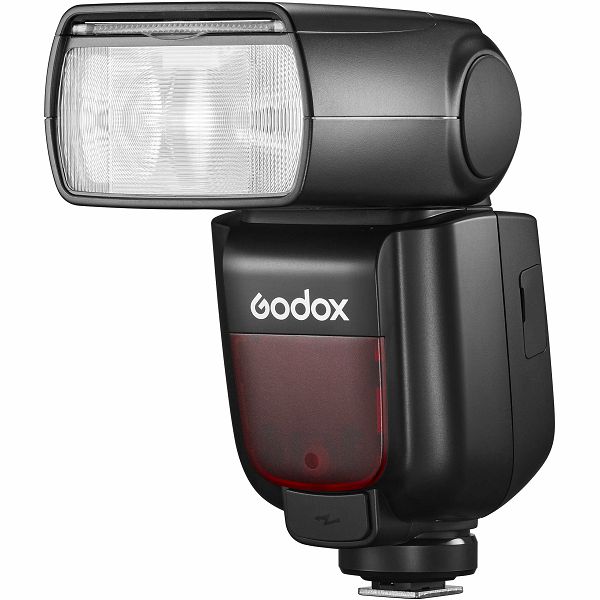

Godox TT685 II speedlite for Olympus/Panasonic

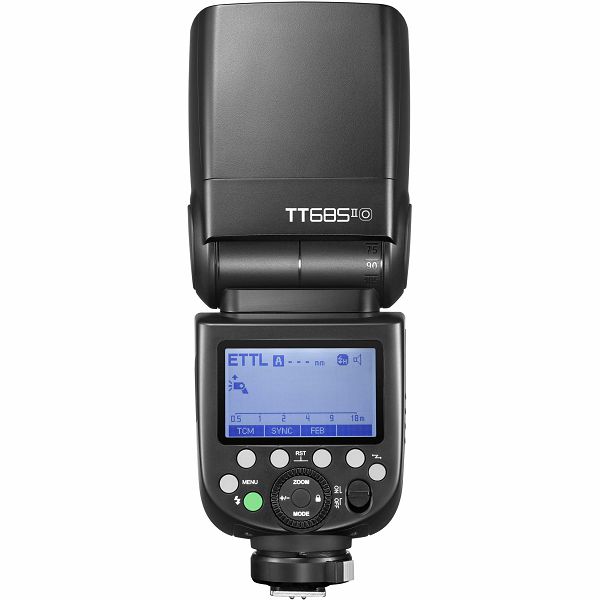

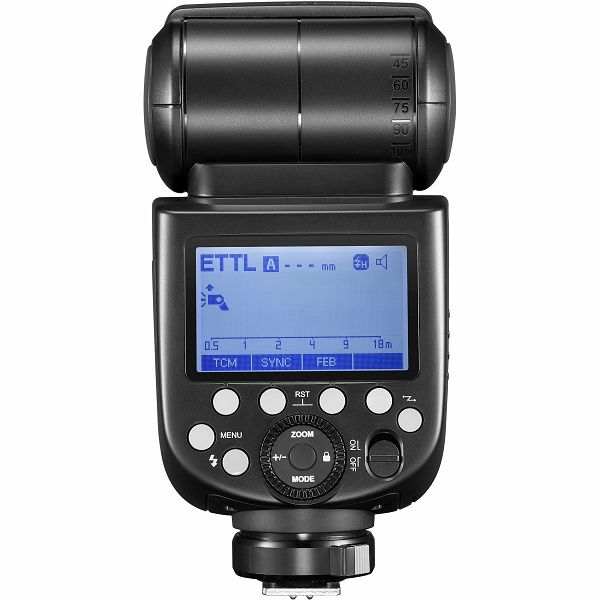

Offering full support for Olympus/Panasonic TTL and a built-in 2.4 GHz radio system, the Godox TT685O II Flash makes it easy to create both simple and elaborate lighting setups. A powerful and effective lighting tool, this flash features a powerful guide number of 197' at ISO 100 with a zoom range of 20-200mm. The TT685O II operates as a full wireless master or slave unit with TTL functionality, and for maximum versatility this updated unit tilts from -7 to 120° and rotates 330°, giving you more flexible flash angles and a more efficient lighting setup process. Also featured is a new and unique TCM (TTL Converted to Manual) function, which allows for instant conversion from TTL to manual mode. This function helps you lock the proper exposure value and is useful for quickly determining a good starting point for setting external flash units in manual mode. For ease of use, an easy-to-read rear LCD panel illuminates your flash settings, and the flash includes a 2.5mm sync port for basic wired connectivity.
- An integrated 2.4 GHz X radio system is incorporated into the TT685O for wireless triggering. Able to be set up as a master or slave, this flash will help you create a versatile lighting setup with a range of 328' and support for 32 channels and four groups. Functions as a transmitter unit for the V1, AD200Pro, and AD300Pro flash systems. Also functions as a receiver unit for X1, X2, XPro, and V1 transmitter units.
- Being compatible with the Olympus/Panasonic TTL system, users will enjoy numerous automated flash settings and the ability to use functions such as high-speed sync up to 1/8000 seconds.
- With a guide number of 197' at ISO 100 the TT685O will easily illuminate most subjects. It also features a zoom head with a range of 20-200mm.
- Manual power control from 1/1 to 1/128 in 1/3 EV steps.

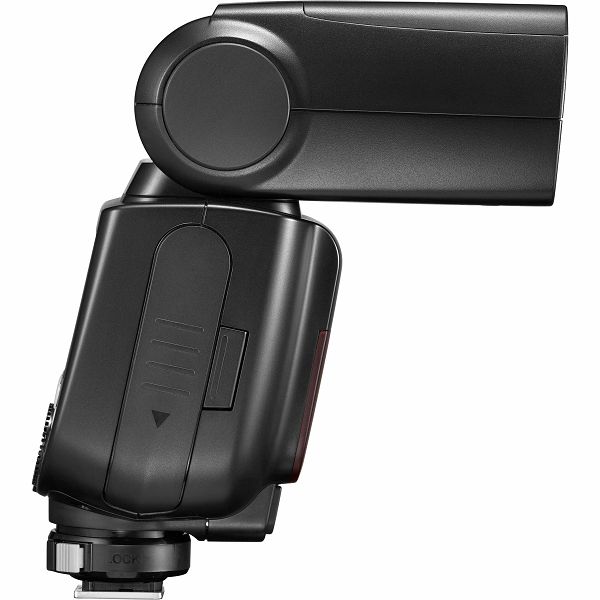

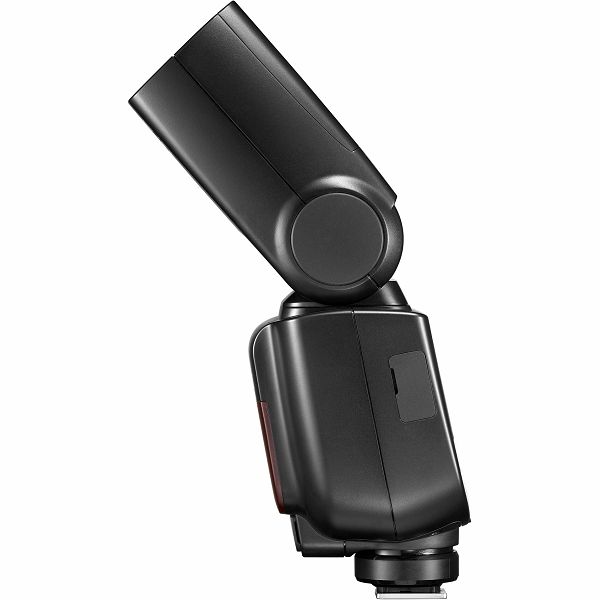

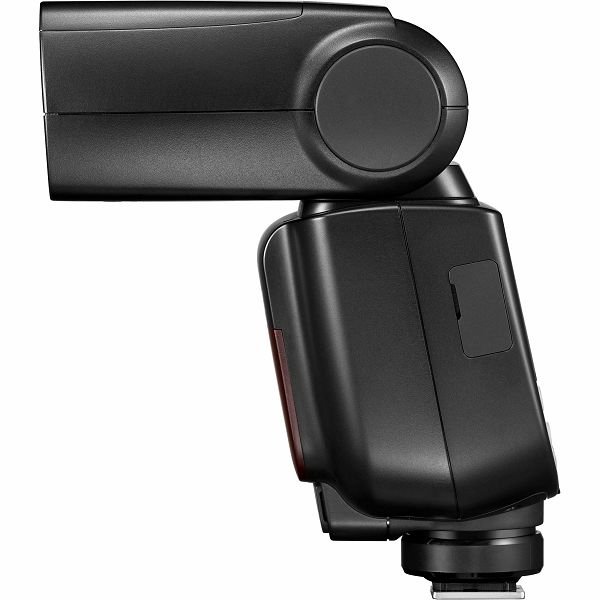

- The flash head can be tilted from -7 to 120° and rotated a total of 330° for controlling bounce and where the light falls on the scene.
- Unique TCM (TTL Converted to Manual) function allows for instant conversion from TTL to manual mode. This function helps you lock the proper exposure value and is useful for quickly determining a good starting point for setting external flash units in manual mode.
- Optical master/slave transmission is available for working with other standard flashes.
- A 2.5mm sync port is available for setting up a wired connection to a camera or trigger.
- Quick-release lock ensures a smooth and fast setup and so you can capture your next shot in critical moments.

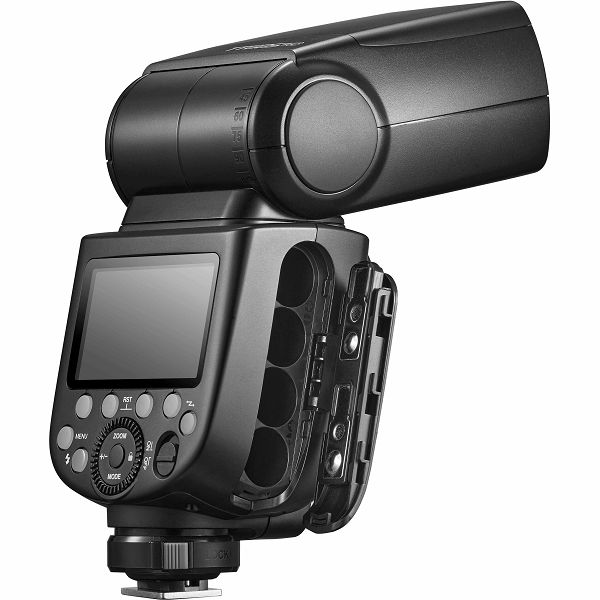

- This flash runs on four alkaline or NiMH AA batteries which help deliver about 330 full-power flashes and recycle times of 0.1-2.6 seconds.
- External power port enables connection to power packs including the PB960 to boost the flash performance for more possibilities, making the flash ideal for weddings, fashion, news photography, and more.
- USB Type-C connection for installing future firmware updates.

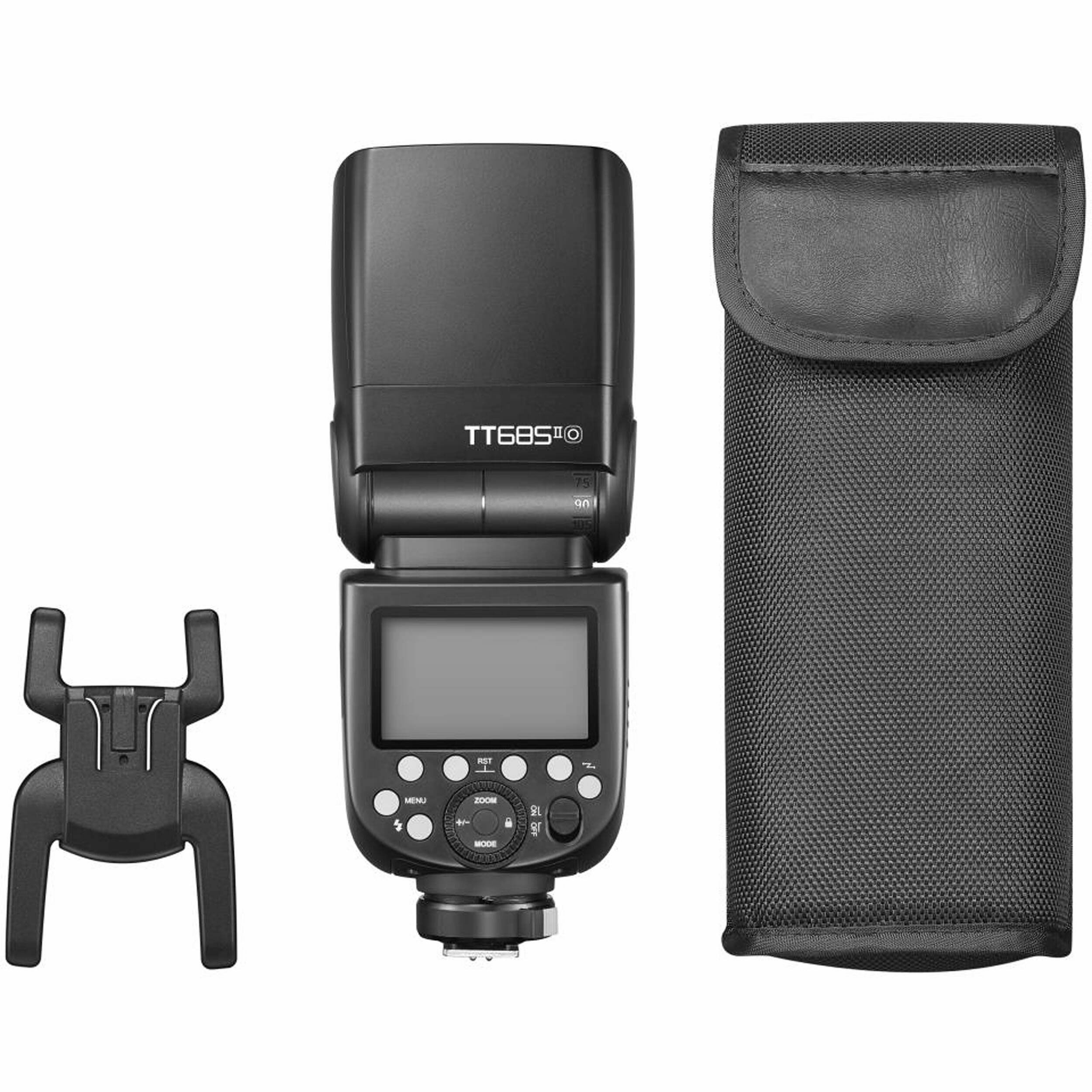

In the Box
- Godox TT685O II Flash for Olympus/Panasonic Cameras
- Mini Stand
- Protective Case
Key features
- Built-In 2.4 GHz X Wireless Radio System
- Compatible with Olympus/Panasonic TTL
- Guide Number: 197' at ISO 100
- Zoom Range: 20-200mm
- Tilts from -7 to 120°
- Rotates Horizontally to 330°
- Wireless Master/Slave TTL Functionality
- Recycle Time: 0.1-2.6 Seconds
- High-Speed, 1st & 2nd Curtain Sync
- Runs on Four AA Batteries
Key Specifications
Guide Number: 196.85' / 60 m at ISO 100
Auto Zoom Head: Yes
Bounce Head: -7 to +120°
Swivel Head: 330°
Exposure Control: Four Thirds TTL, TTL via Separate Commander, Manual
Wireless Operation: Radio (TTL/Manual); Up to 328.08' / 100 m; Optical Pulse (TTL/Manual): Up to 49.21' / 15 m (Master, Slave)
Internal Power: 4x AA (Alkaline, NiMH)
Off-Camera Terminal: 2.5 mm
Flash Head
Guide Number: 196.85' / 60 m at ISO 100
Coverage : Full-Frame - 20 to 200 mm
Auto Zoom Head: Yes
Bounce Head: -7 to +120°
Swivel Head: 330°
Flash Duration: 1/300 to 1/20000 Second
Recycle Time: Approx. 0.1 to 2.6 Seconds
Exposure Control
Exposure Control: Sony ADI / P-TTL, TTL via Separate Commander, Manual
Flash Modes: Hi-Speed Sync, Second-Curtain Sync
Power Range: 1/1 to 1/128
Flash Compensation: -3 to +3 EV (1/3 EV Steps)
Wireless
Wireless Operation : Radio (TTL/Manual) Up to 328.08' / 100 m; Optical Pulse (TTL/Manual) Up to 49.21' / 15 m (Master, Slave)
Wireless Channels: 32
Wireless Groups: 5
Remote Timing Modes: Instant Sync; Skip Preflash
Power
Internal Power: 4x AA (Alkaline, NiMH)
External Power Pack Compatible: Yes
General
Mount: Shoe
Off-Camera Terminal: 2.5 mm
Dimensions (W x H x D): 2.5 x 3 x 7.5" / 64 x 76 x 190 mm
Weight: 14.3 oz / 405 g (without Batteries)
Packaging Info
Package Weight: 1.185 lb
Box Dimensions (LxWxH): 8.1 x 3.6 x 3.3"
