DJI Avata Pro-View Combo (DJI RC Motion 2)
Discover the Freedom of Flight
Lose yourself in total immersion as you swoop and dive like never before. Combine Avata with DJI goggles for a life-like flying experience.

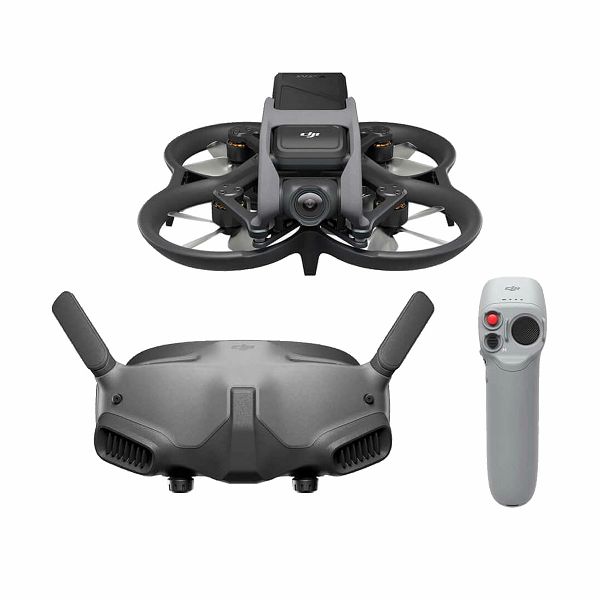

DJI Avata Pro View Combo
Safely film steady, ultra-wide 4K stabilized video indoors or outside, in and around objects, with the DJI Avata Pro View Combo. Sporting what some call a “cinewhoop” design, the Avata comes in a palm-sized form factor with all four propellers protected with attached guards. This allows for close-up filming indoors, near people, and through small openings without risking damage or injury to people and property. If the Avata does come in contact, it can just bounce off and keep flying.
With the Pro View Combo, piloting the DJI Avata is an immersive and intuitive experience with the included Goggles 2 and Motion Controller. The Goggles 2 are compact, lightweight FPV goggles that utilize dual 1080p micro-OLED screens to provide a clear, full-screen live feed from the drone’s point of view. The Motion Controller delivers a unique and natural method of flying, where instead of a typical gamepad-style remote, you squeeze a trigger to fly forward and swivel your wrist to turn corners.
Wide-Angle Stabilized Video
The Avata comes equipped with a 48MP 1/1.7” CMOS sensor, which supports up to 4K video at 100 fps. This footage is shot with an ultra-wide 155° FOV that mimics how we see with our own eyes for a natural and realistic experience. The footage is stabilized in two ways using RockSteady 2.0 EIS and HorizonSteady EIS. RockSteady EIS works to reduce camera shake, while HorizonSteady locks the Avata’s footage to a level horizon.
DJI Goggles 2
The ultra-wide 155° FOV of the Avata makes for an exhilarating experience when first-person piloting with the DJI Goggles 2. The goggles receive a steady transmission via the DJI O3+ system over dual-band Wi-Fi 5 (802.11ac) and can run for up to two hours per charge. The live feed you view is clear and lifelike regardless of your eye type, thanks to an adjustable and lockable diopter that ranges from +2.0 to -8.0D. When you’re not flying, the foldable antennas make the compact goggles even easier to store and transport.
O3+ Transmission
Utilizing 2T2R omnidirectional antennas, the Avata Pro View Combo can feed the Goggles 2 with Full HD 1080p video at up to 100 fps, with only a 30 ms latency, and at a 50 Mb/s data transfer rate. The footage is compressed with H.265 to save on storage space when saving videos, and it can be sent from up to 6.2 miles away.
Obstacle Sensing
A downward binocular vision sensor and ToF depth sensor work conjunctively to detect obstacles on the ground during flight. This gives pilots the ability to safely fly low-altitude and indoor flights.
Drone Safety
If you envision an impending accident, you can quickly activate the emergency brake button to have the Avata stop on a dime and hover in place. Another safety feature is RTH (Return to Home), which automatically flies the drone back to its starting point if the battery is too low or if the signal to the remote is lost.
Turtle Mode
The propeller guards usually let the Avata take a bump and keep on flying, but what if the Avata hits hard enough to fall and land on its back like a turtle? Just activate Turtle Mode with a few taps to have the Avata flip itself right side up and get back to flying.
Virtual Flight App
Designed for Windows, iOS 12.0+, and Android 9.0+, this software lets new and experienced pilots practice flying indoors and outside, honing their skills from a variety of preinstalled simulated scenarios.
Additional Features
- Immersive Flight Experience
- Intuitive Motion Control
- 4K/60fps 155° Super-Wide FOV Videos
- Powerful Video Stabilization
- Weighs About 410 g, Lightweight and Portable
- Enhanced Safety with Built-in Propeller Guard
- 1080p/100fps video transmission quality: the lowest latency of 30 ms
- Two 1080p Micro-OLED screens
- 1 x DJI Avata
- 1 x DJI Goggles 2
- 1 x DJI RC Motion 2
- 1 x DJI Avata Intelligent Flight Battery
- 3 x DJI Avata Propellers (Pair)
- 1 x DJI Avata Power Adapter
- 1 x DJI Avata Gimbal Protector
- 1 x Type-C to Type-C PD Cable
- 1 x Screwdriver
- 4 x Screws (M2×7)
- 1 x DJI Goggles 2 Battery
- 1 x DJI Goggles 2 Eyeglass Frames (Pair)
- 1 x DJI Goggles 2 Screen Protector
- 1 x DJI Goggles 2 Headband
- 1 x DJI Goggles 2 Power Cable
- 1 x DJI Goggles 2 Dual-Band Antenna (Pair)
- 1 x USB-C OTG Cable
- 1 x Lanyard
- 18-minute flight time
- 4K stabilized video
- Immersive flight experience
- Intuitive motion controller
- Palm-sized and agile
- Built-in propeller guard
- HD Low-latency transmission
- DJI RC Motion 2
- 4K@30/50/60fps
- 2.7K@30/50/60/100/120fps
- 1080p@30/50/60/100/120fps
- 4K@30/50/60fps
- 2.7K@30/50/60/100/120fps
- 1080p@30/50/60/100/120fps

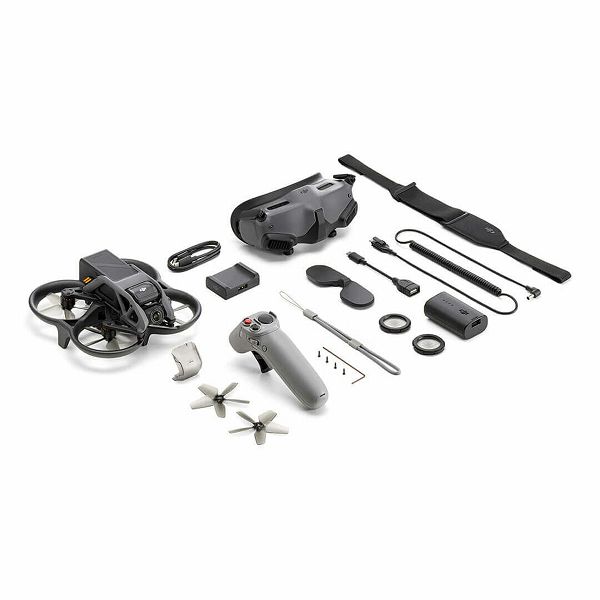

In the Box
Key features
Specifications
Camera
Sensor
1/1.7-inch CMOS
Effective Pixels: 48 MP
Lens
FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range
100-6400 (Auto)
100-25600 (Manual)
Shutter Speed
Video: 1/8000-1/50 s
Photo: 1/8000-1/50 s
Still Photography Mode
Single Shot
Max Image Size
4000×3000
Photo Format
JPEG
Video Resolution
With DJI Goggles 2:
With DJI FPV Goggles V2:
Video Format
MP4
Max Video Bitrate
150 Mbps
Color Mode
Standard
D-Cinelike
EIS
Supports RockSteady and HorizonSteady
Can be disabled
Distortion Correction
Supports Normal Mode, Wide Mode, and Ultra Wide Mode
Supported File System
exFAT (recommended)
FAT32
Gimbal
Mechanical Range
Tilt: -95° to 75°
Controllable Range
Tilt: -80° to +65°
Stabilization
Single-Axis (tilt)
Max Control Speed
60°/s
Angular Vibration Range
±0.01°
Electronic Roll Axis
Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
Aircraft
Model
QF2W4K
Takeoff Weight
Approx. 410 g
Dimensions (L×W×H)
180×180×80 mm
Diagonal Distance
120 mm
Max Ascent Speed
6 m/s (Normal Mode, Sport Mode)
Max Descent Speed
6 m/s (Normal Mode, Sport Mode)
Max Speed [1]
8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)
Maximum Takeoff Altitude
5000 m
Max Hover Time
Approx. 18 mins [2]
Max Flight Distance
11.6 km
Max Wind Speed Resistance
10.7 m/s (Level 5)
Operating Temperature Range
-10° to 40° C (14° to 104° F)
Transmission Power (EIRP)
FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
Antennas
Dual Antennas, 2T2R
GNSS
GPS + Galileo + BeiDou
Hovering Accuracy Range
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GNSS Positioning)
Supported SD Cards
microSD (up to 256 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC
Internal Storage
20 GB
Sensing System
Downward (Binocular Vision and ToF) [3]
ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m
Operating Environment
Diffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)
Intelligent Flight Battery
Battery Capacity
2420 mAh
Voltage
14.76 V
Charging Voltage Limit
17 V
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy
35.71 Wh@0.5C
Discharge Rate
Typical: 7C
Weight
Approx. 162 g
Charging Temperature Range
5° to 40° C (41° to 104° F)
Video Transmission
Communication Frequency
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [4]
Communication Bandwidth
Max 40 MHz
Live View Quality and Latency [5]
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
Max Video Transmission Bitrate [6]
50 Mbps
Max Video Transmission Range [7]
10 km (FCC), 2 km (CE), 6 km (SRRC)
Audio Transmission
N/A
DJI Goggles 2
Model
RCDS18
Weight
Approx. 290 g (headband included)
Dimensions (L×W×H)
With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm
Screen Size (single screen)
0.49-inch
Resolution (single screen)
1920×1080
Refresh Rate
Up to 100 Hz
Interpupillary Distance Range
56-72 mm
Diopter Adjustment Range
-8.0 D to +2.0 D
FOV (single screen)
51°
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP)
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Wi-Fi Protocol
Wi-Fi 802.11b/a/g/n/ac
Wi-Fi Communication Frequency
2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [8]
5.725-5.850 GHz [4]
Wi-Fi Transmission Power (EIRP)
2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
Bluetooth Protocol
Bluetooth 5.2
Bluetooth Communication Frequency
2.400-2.4835 GHz
Bluetooth Transmission Power (EIRP)
< 8 dBm
Max Video Transmission Bitrate [6]
50 Mbps
Video Recording Format
MOV
Supported Video and Audio Playback Formats
MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)
Wi-Fi Wireless Streaming
Supports DLNA Protocol
Operating Temperature Range
-10° to 40° C (14° to 104° F)
Power Input
DJI Goggles 2 Battery
Supported SD Cards
microSD (up to 256 GB)
DJI Goggles 2 Battery
Capacity
1800 mAh
Voltage
7-9 V (1.5 A)
Type
Li-ion
Chemical System
LiNiMnCoO2
Energy 18 Wh
Charging Temperature Range
0° to 45° C (32° to 113° F)
Max Charging Power 12.6 W (5 V/2 A, 9 V/1.4 A)
Weight
Approx. 122 g
Dimensions (L×W×H)
73.04×40.96×26 mm
Operating Time
Approx. 2 hours
DJI FPV Goggles V2
Model
FGDB28
Weight
Approx. 420 g (headband and antennas included)
Supported Video and Audio Playback Formats
MP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature Range
0° to 40° C (32° to 104° F)
Video Recording Format
MOV (video coding format: H.264)
FOV 30° to 54°, adjustable
Image Size: 50% to 100%
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [4]
Max Video Transmission Bitrate [6]
50 Mbps
Dimensions (L×W×H)
Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm
Transmission Power (EIRP)
2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
5.725-5.850 GHz [4]
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
Screen Size (single screen)
2-inch
Power Input
Dedicated DJI Goggles batteries
Supported SD Cards
microSD (up to 256 GB)
Communication Bandwidth
Max 40 MHz
Interpupillary Distance Range
58-70 mm
Refresh Rate
144 Hz
Screen Resolution
1440×810
DJI FPV Goggles V2 Battery
Weight
Approx. 119 g
Dimensions (L×W×H)
73.04×40.96×26 mm
Capacity
1800 mAh
Voltage
Max 9 V
Chemical System
LiNiMnCoO2
Type
Li-Po 2S
Energy
18 Wh
Charging Temperature Range
0° to 45° C (32° to 113° F)
Max Charging Power
10 W
Operating Time
Approx. 110 mins
DJI Motion Controller
Model
FC7BMC
Weight
Approx. 167 g
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP)
2.4 GHz: ≤ 28.5 dBm (FCC), ? 20 dBm (CE/SRRC)
5.8 GHz [4]: ≤ 31.5 dBm (FCC), ? 19 dBm (SRRC), ≤ 14 dBm (CE)
Operating Temperature Range
-10° to 40° C (14° to 104° F)
Operating Time
Approx. 5 hours
DJI FPV Remote Controller 2
Model
FC7BGC
Weight
Approx. 346 g
Communication Frequency
2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP) 2.4 GHz: ? 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz [4]: ≤ 31.5 dBm (FCC), ? 19 dBm (SRRC), ≤14 dBm (CE)
Dimensions (L×W×H) 190×140×51 mm
Operating Time Approx. 9 hours
Operating Temperature Range
-10° to 40° C (14° to 104° F)
Charging Time
2.5 hours
Footnotes
1 The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
2 Tested when hovering in an environment without wind or interference.
3 DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
4 The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5 Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
6 Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
7 FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards: FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions. SRRC: Mainland China. CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
8 The 5.1 GHz frequency band is currently banned in China and Thailand. For details, please refer to local laws and regulations.
