Canon imagePROGRAF Lm36 Scanner

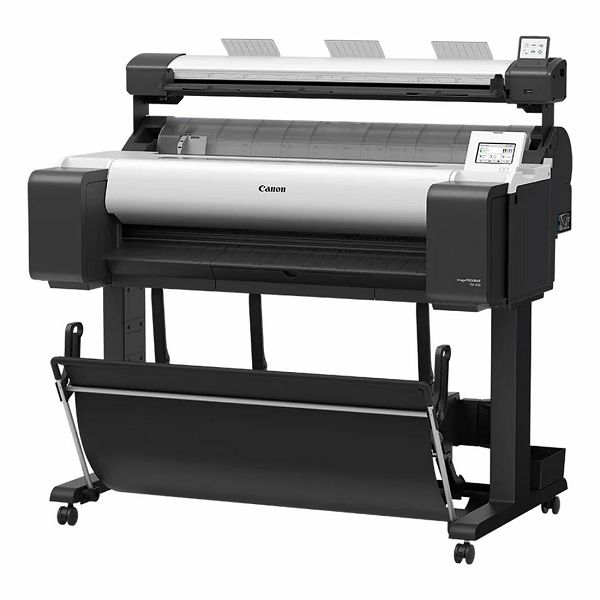

Digitize your photographs and documents with confidence and ease by using the imagePROGRAF Lm36 Scanner from Canon but what is even more exciting, bundle it with one of Canon's Large-Format imagePROGRAF printers, and you will be amazed at the amazing output. Optimized to handle the delicate nature of print with print jobs that can be as large as 36" x 109" long. It is also capable of high-quality scans using a 600 dpi CCD sensor with scanning speed of up to 3" per second monochrome, 1" per second color.
- Scanning speed of up to 3" per second in monochrome, 1" per second color.
- SingleSensor technology (up to 600 dpi).
- Scan documents up to 0.8 mm thick.
- Multicolor 3" LCD touchscreen user-interface.
- Green Button scan-to-copy functionality. No PC required.
- Low volume for entry-level users.
- Bidirectional extra long-life LED light system for optimum object illumination and instant-onscanning capability.
Items Included
- Canon imagePROGRAF Lm36 Scanner
- Set of Mounting Brackets and Fixings
- 3mm Tool
- Calibration Target
- Ethernet Cable (6.6')
- Power Supply (6.6')
- Limited 1-Year Manufacturer Warranty
Key Features
- For Select imagePROGRAF Printers
- Optical Resolution: 600 dpi
- Scan-to-Copy Functionality
- No PC Required
- Maximum Scan Size: 36" x 109"
- Minimum Scan Size: 3.2 x 6"
- Scan Speed: B&W: 3 ips / Color: 1 ips
- 3.5" Color Touchscreen
Canon LM 36 Specs
Key Specs
- Scanner Type: Manual Feed
- Scanner Maximum Resolution: 600 dpi (Optical)
- Scanner Color Depth: 24-Bit (Internal)
- Mobile App Compatible: No
- Power Source: AC Adapter (Included)
Scanner
- Scanner Type: Manual Feed
- Scanner Maximum Resolution: 600 dpi (Optical)
- Scan Modes: Color, Grayscale, Monochrome
- Scanner Color Depth: 24-Bit (Internal)
- Grayscale Depth: 16-Bit (Internal)
- Light Source: LED
- Image Sensor: 1x Contact Image Sensor (CIS)
- Duplex Scanning: No
- Single Pass Duplex: No
- Scan Speed:
1 Second per Page at 200 dpi in Color
3 Seconds per Page at 200 dpi in Black & White
Scanner Media Handling
- Scan Sizes :
Document Feeder
Minimum: 3.2 x 6" / 8.1 x 15.2 cm
Maximum: 38 x 109" / 96.5 x 276.9 cm - Media Thickness: Document Feeder: 2.76 to 3.15 mil / 0.07 to 0.08 mm
- Multi-Feed Detection: Yes
Connectivity
- Inputs/Outputs: Scanner: RJ45
- Mobile App Compatible: No
- OS Compatibility:
Windows 7 (32-/64-Bit)
Windows 8 (32-/64-Bit)
Windows 10 (32-/64-Bit)
Windows 11 (64-Bit Only)
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022 (64-Bit Only)
macOS 10.13
Environmental
- Operating Temperature: 50 to 95°F / 10 to 35°C
- Operating Humidity: 10 to 90%
General
- Display Size: 3.5"
- Display Type: Color Touchscreen LCD
- Power Source: AC Adapter (Included)
- Battery: No
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- Power Consumption:
0.6 W (Sleep)
11.7 W (Ready)
17.5 W (Maximum) - Certifications: ENERGY STAR, UL, FCC
- Dimensions (W x H x D):
Scanner
48.7 x 5.2 x 10" / 123.7 x 13.2 x 25.4 cm (with Paper Tray Extended) - Weight
Scanner
14.5 lb / 6.6 kg
Packaging Info
- Package Weight: 26.15 lb
- Box Dimensions (LxWxH): 52.5 x 10 x 8"
