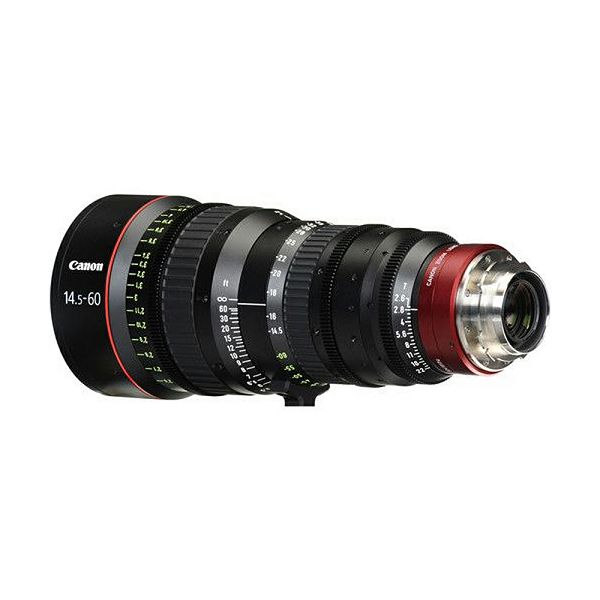

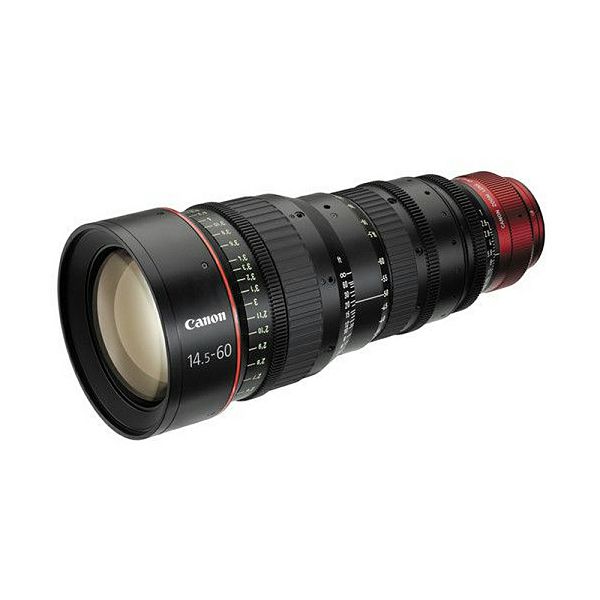

With a focal length range of 14.5-60mm, the 4.1x cinema zoom lens is designed to cover the wider end of the focal lengths typically required by cinematic productions, and its wide-angle length of 14.5mm puts it among the best in its class. (The other zoom lens in the line, the CN-E 30-300mm T2.95-3.7 L SP, covers the telephoto end.) Maximum aperture is a very fast T2.6 through the entire range, and the 11-blade iris enables a smooth bokeh for out-of-focus areas of the frame.
The lens was designed with working professionals in mind, with easy-to-read focus, zoom, and iris markings engraved into angled surfaces on both sides of the lens, so you can read the setting from either side of a camera – or from behind it. Depending on the production's needs, focus markings can be switched from standard to metric. The lens facilitates manual operation that's subtle, smooth, precise, and repeatable. Control rings are designed to provide and maintain the proper amount of resistance so you can operate with a consistent torque. The focus rotation angle is about 300°; for zoom, it's approximately 160°.
The CN-E 14.5-60mm T2.6 L SP lens complements the other lens in the line in more ways than just focal length range: Their shared 136mm front diameter, gear positions, and rotation angle make them almost "hot-swappable" when they're used with a shared matte box or follow focus.
Internal Focus Design
The internal geared focus design of the lens minimizes focus-induced changes, known as "breathing"
Cinematic Blurring
An 11-blade aperture diaphragm results in soft, cinematic blurring of out-of-focus areas
Special Glass & Construction
Designed to counteract barrel expansion and contraction, the special glass and the construction of the lens suppress temperature-induced marking discrepancies and flange-back changes
Broad Focal Length Range
The 14.5-60mm focal length range of the lens covers a great portion of the range most commonly used in cinema shooting
Large Aspherical Lenses
Fluorite and aspherical lens elements reduce distortion and give high optical performance
Anti-Reflective Coating
The anti-reflective coating of the lens helps reduce ghosting or flaring
Switchable Unit for Focus Marking
The outer piece of the marked focus rings can be switched from metric to non-metric labeling

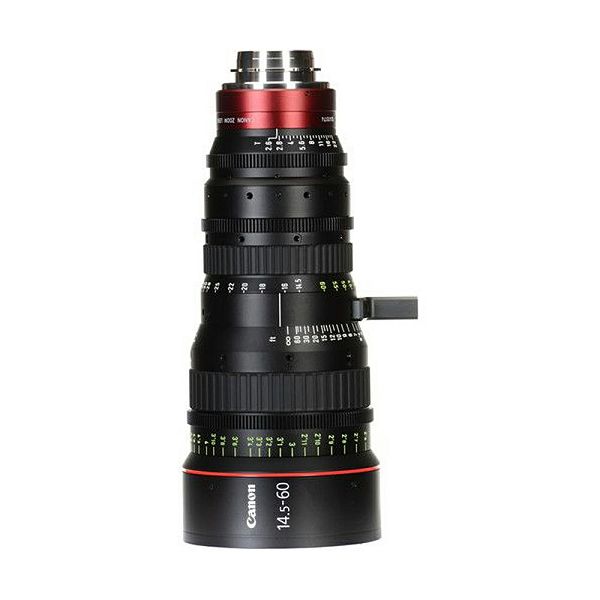

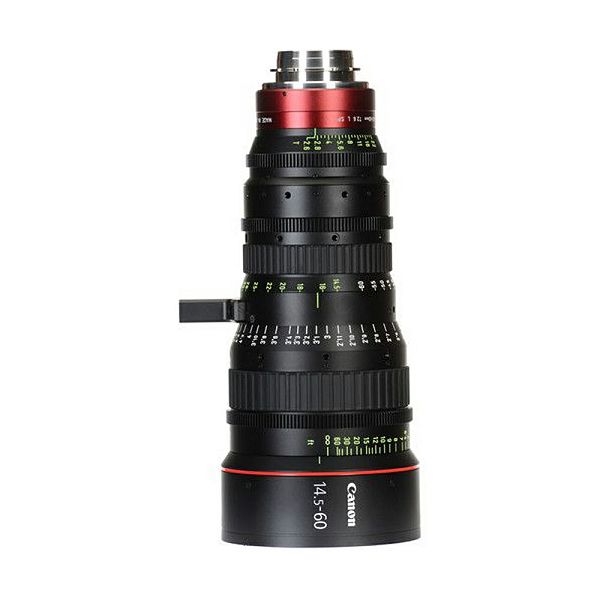

Marked on Both Sides
Markings are visible from either side of the lens
Better Marking Visibility
Focus, zoom, and iris markings are printed on angled surfaces, making them easier to read from behind the camera
Unified Front Lens Diameter, Gear Position
A single front lens diameter and uniform gear positions across the line of lenses eliminate the need to move or adjust accessories when switching between lenses
Flange-Back Adjustment Mechanism
A covered flange-back mechanism is included for more accurate back-focus
Supports Standard Accessories
The lens can be used with standard accessories such as follow focus gears, marking disks, and matte boxes
Ergonomic & Efficient
Control rings offer the right amount of resistance and consistent operating torque
Light & Compact
Smaller and lighter than similar movie lenses of the same range, making them more comfortable to work with, hour after hour
What's Included
- Canon CN-E 14.5-60mm T2.6 L SP Cinema Zoom Lens with PL Mount
Key features
- Focal Length: 14.5 - 60mm
- Lens Mount: ARRI PL
- Format: Super 35/APS-C
- Image Circle: Not specified by manufacturer
- Maximum T-Stop: T2.6
- Minimum T-Stop: Not specified by manufacturer
- Diagonal Angle of View: Super 35: 94.1 - 25.7°
- Minimum Focus Distance from Image Plane: 28" / 70 cm
- Elements/Groups: Not specified by manufacturer
- Iris Blades: 11
- Front Diameter: 136 mm
- Filter Thread: Not specified by manufacturer
- Focus Scales: Not specified by manufacturer
- Zoom Ratio: 4.1x
- Electronic Communication: Not specified by manufacturer
- Tripod Mounting Thread: Not specified by manufacturer
- Dimensions (W x H): 5.35 x 6.42" / 135.9 x 163.1 mm
- Length: 12.52" / 318 mm
- Weight: 9.9 lbs / 4.5 kg
