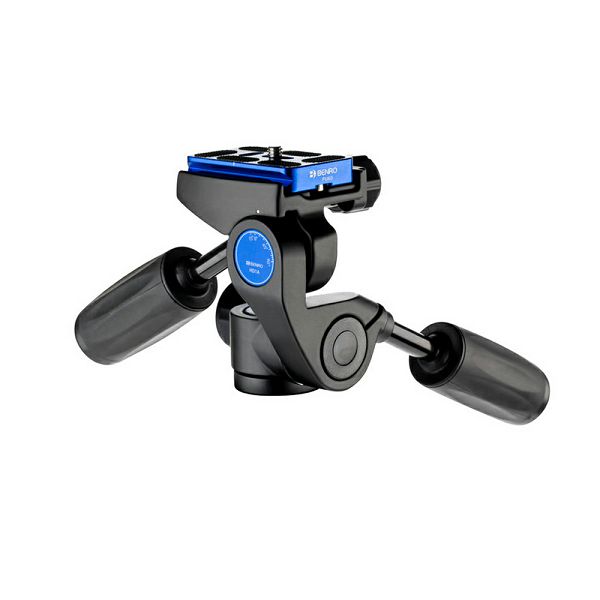

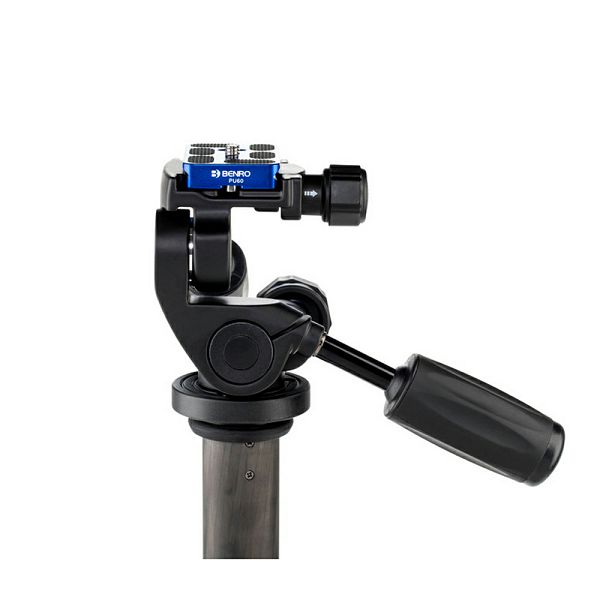

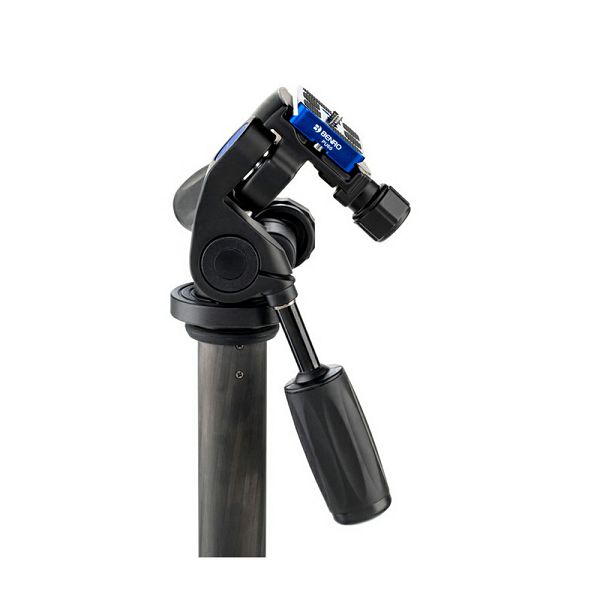

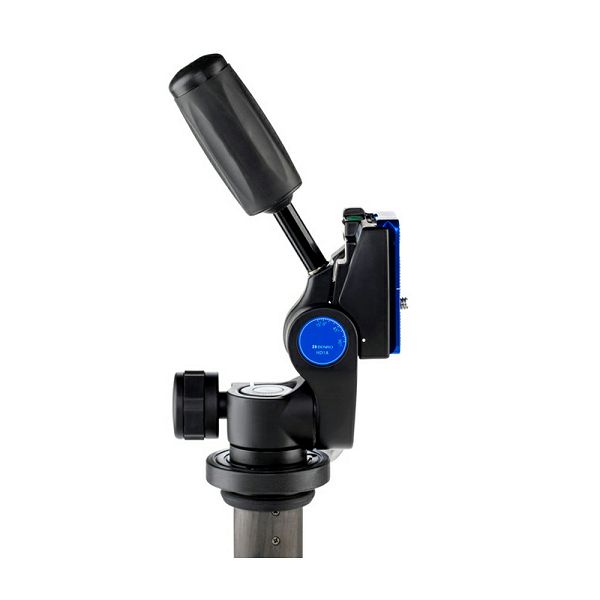

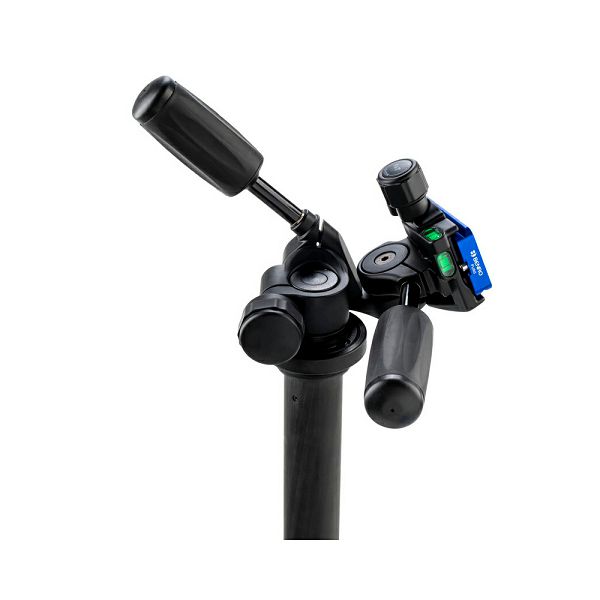

BENRO HD1A 3-way pan head
The popular HD series of 3-Way tripod heads provide more precise camera movement and positioning than ball heads, and now the Benro HD series has been refined, remodeled and offers greater versatility than before.

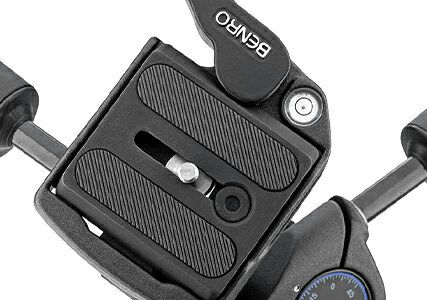

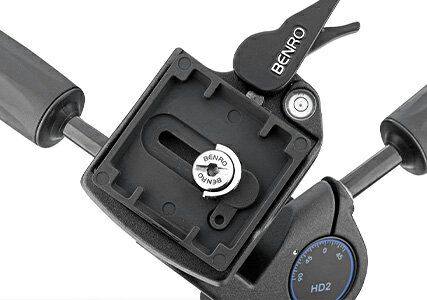

There are two major changes to the overall design of the head. The first is that it now includes an Arca-Swiss compatible plate with our Pull/Twist security feature. Many photographers already own tripod kits with heads that are Arca-Swiss compatible so photographers can swap between Ball Heads and 3-Way Heads without needing to change QR plates.

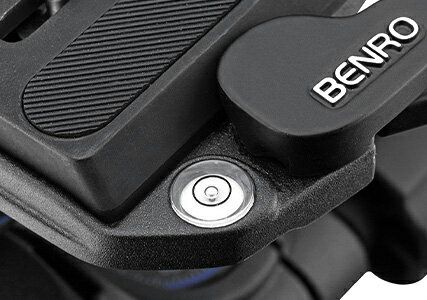

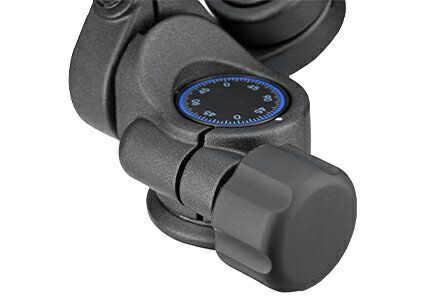

The second upgrade is that the new design now incorporates 3 bubble levels for precise and accurate positioning. Reference scales have also been added to the HD2A and HD3A models so that settings can be easily replicated.
All models offer a side tilt range from -90° / +15°, Front and rear tilt range of -35° / +90° and full 360° rotation.
There are three models in the series designed to carry a maximum load of 11 lb / 5kg (HD1A), 17.6 lb / 8kg (HD2A) and 26.4 lb / 12kg (HD3A) respectively.
- Independent Movement in 3 Axes - Allows precise positioning
- Arca-Swiss Compatible QR Plate - Compatible with other heads in the Benro range
- 3 Bubble Levels - Assists in accurate levelling for precision positioning

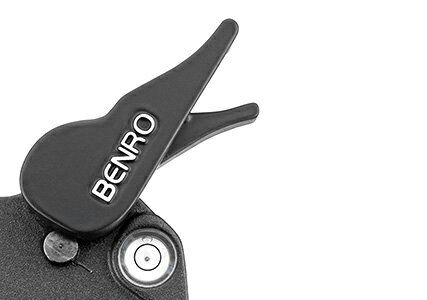

- Safety Release - Pull & Twist Quick Release Safety System to prevent accidental release
- Ergonomic Handles - Easy to use and comfortable hand grips
Item Includes
- HD1A 3-axis head

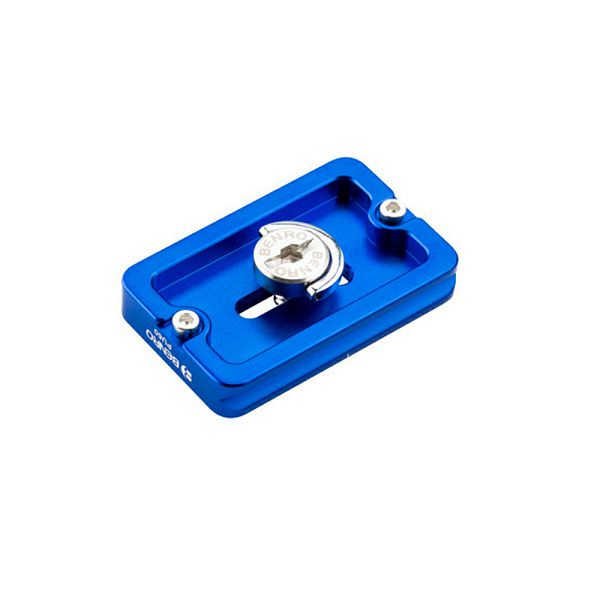

- PU60 Arca-Swiss standard camera quick release plate
Download Manual
Specifications
- Base Mount Diameter (mm): 35
- Bubble Level: Yes
- Head Mount: 3/8
- Maximum Payload Capacity (lb): 11.02
- Maximum Payload Capacity (kg): 5
- Product Height (in): 3.74
- Product Height (cm): 9.5
- Product Length (in): 6.69
- Product Length (cm): 17
- Product Weight (lb): 1.25
- Product Weight (kg): 0.57
- Product Width (in): 5.71
- Product Width (cm): 14.5
- QR Plate - Length (cm): 6
- QR Plate - Length (in): 2.3622047244094486
- QR Plate - Width (cm): 3.8
- QR Plate - Width (in): 1.4960629921259843
- Quick Release Camera Thread Size: 1/4"-20
- Quick Release Type: Arca
