Nikon AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR Lens
A versatile wide-angle zoom for Nikon DX-format DSLRs, the AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR is a 15-30mm-equivalent lens well-suited to landscapes, cityscapes, architecture, and interior shooting. Despite its wide field of view, Vibration Reduction (VR) image stabilization is featured to help minimize the appearance of camera shake for sharper handheld shooting. The lens also features a pulse stepping motor AF system, which benefits both video and photo applications due to its fast, quiet, and smooth focusing performance. In regard to its optical design, three aspherical elements are used to control spherical aberrations and distortion throughout the zoom range for improved sharpness and clarity. Additionally, a Super Integrated Coating has been applied to control lens flare and ghosting when working in strong lighting conditions.
Compatible Cameras
- Full Compatibility: D500, D7500, D5600, D5500, D3500, D3400, D850 (in DX mode), and Z-series mirrorless cameras with FTZ adapter
- Compatible with Limited Functions: D7200, D7100, D5300, D5200, and D3300; D810A, D810, D800E, D800, D750, D610, D600, D5, and Df in DX mode; and 1-series mirrorless cameras with FT1 adapter
- Compatible cameras may require a firmware update for use

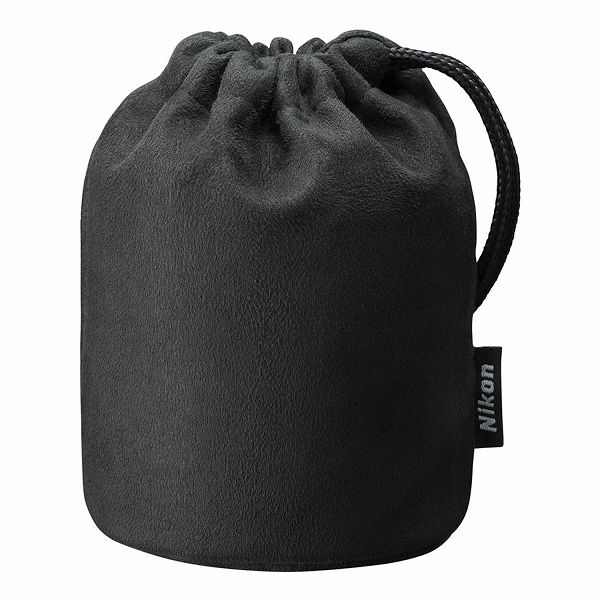

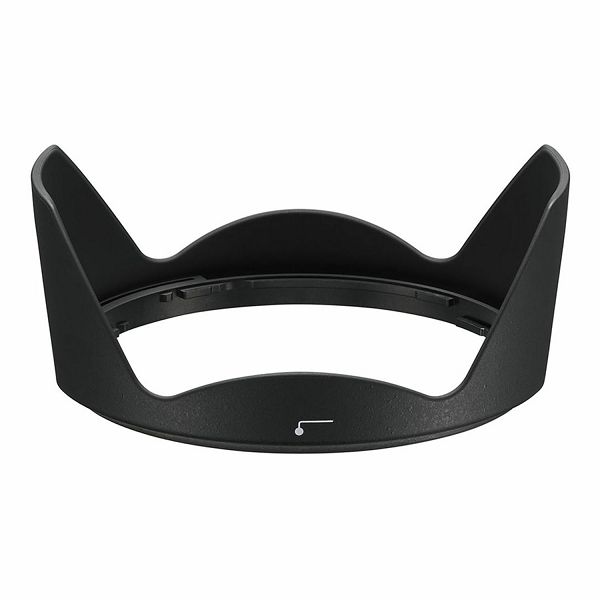

Items Included
Key Features
- F-Mount Lens/DX Format
- Aperture Range: f/4.5 to f/29
- Three Aspherical Elements
- Super Integrated Coating
- Pulse Stepping Motor AF System
- VR Image Stabilization
- Rounded 7-Blade Diaphragm
Nikon AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR Specs
Key Specs
- Focal Length: 10 to 20mm (35mm Equivalent: 15 to 30mm)
- Maximum Aperture: f/4.5 to 5.6
- Lens Mount: Nikon F
- Lens Format Coverage: APS-C
- Focus Type: Autofocus
- Image Stabilization: Yes
- Filter Size: 72 mm (Front)
- Maximum Aperture: f/4.5 to 5.6
- Minimum Aperture: f/29
- Lens Mount: Nikon F
- Lens Format Coverage: APS-C
- Angle of View: 109° to 70°
- Minimum Focus Distance: 8.66" / 22 cm
- Maximum Magnification: 0.17x
- Optical Design: 14 Elements in 11 Groups
- Diaphragm Blades: 7, Rounded
- Focus Type: Autofocus
- Image Stabilization: Yes
- Filter Size: 72 mm (Front)
- Dimensions (o x L): 3.03 x 2.87" / 77 x 73 mm
- Length at Maximum Extension: 3.24" / 82.4 mm
- Weight: 8.11 oz / 230 g
Packaging Info
- Package Weight: 1.165 lb
- Box Dimensions (LxWxH): 7.1 x 4.9 x 4.55"
